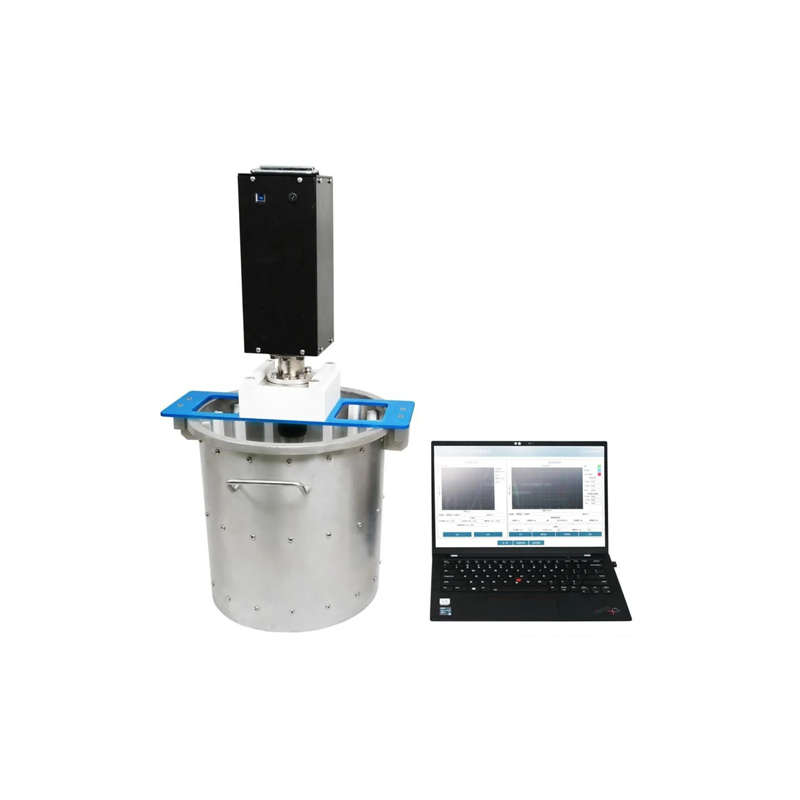

Fresh Concrete Slump Cone Flow Deformation Test Concrete Rheometer
Fresh Concrete Slump Cone Flow Deformation Test Concrete Rheometer
I. Use
Measure from low slump to self-setting concrete mortar (minimum slump: concrete slump should not be less than 50mm, preferably more than 75mm, otherwise, the concrete will be too hard and the instrument test results will be poor.)
II. Technical Specification
|
Number |
Technical |
Technical indicators |
|
1 |
Nominal maximum size of aggregate |
5-35mm (special customization, the maximum can be 45mm) |
|
2 |
Replaceable impeller |
Controllable speed, impeller speed: 0.001rps–1.0rps |
|
3 |
blade diameter |
125mm, blade height 125mm
|
|
4 |
Torque test range |
0.01Nm-50Nm, accuracy 0.1% |
|
5 |
Motor type |
Servo motor |
|
6 |
Minimum torque |
0.001Nm |
|
7 |
Peak torque |
90Nm, no more than 2s |
|
8 |
Continuous maximum torque |
32 Nm |
|
9 |
Power supply |
220-240 VAC, 400W |
Can perform stress growth test and dynamic rheological curve test
The software controls the rheometer, automatically collects data, calculates Bingham rheological parameters—yield stress and plastic viscosity, draws curves, and stores test results.
Usually the actual test process of the rheometer only takes 1 min
