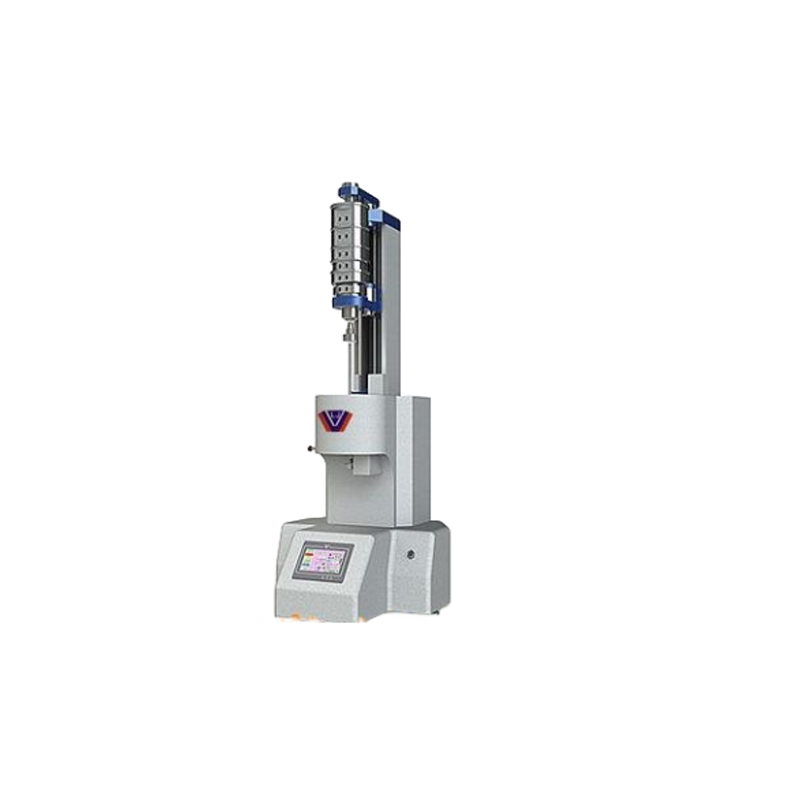

Full-automatic Melt Flow Index Tester
[rank_math_breadcrumb]
Full-automatic Melt Flow Index Tester
| Testing range | 0.1-800.00g/10min (MFR)
0.1-800.00 cm3/10min(MVR) |
| Temperature range | Room temperature~400°C |
| Controlling Accuracy | ±0.2°C |
| Timing accuracy | 0.1s |
| Displacement accuracy | 0.01mm |
| Standard loads | 325g, 875g, 960g, 1200g, 1640g, 2500g, 4100, 5000g & 5000g |
| Combination load | 325g, 1200g, 2160g, 3800g, 5000g, 7160g, 10000g, 21600g |
| Material cutting method | Manual, timing and automatic cutting (optional) |
| Time setting | 0.1~999.9min |
| Cylinder | Diameter 9.5504±0.0076mm |
| Land of piston | Diameter 9.4742±0.0076mm, length: 6.35±0.13mm |
| Thin hole pattern | External diameter: 9.5±0.02mm;
bore diameter 2.0955±0.0051mm; length 8.00±0.025mm |
| Machine Size | (L×W×H) 40×51×60cm |
| Weight | 42kg (not including the weights) |
| Power | AC220V, 50Hz, single phase |
| Accessory | Weights x 1 set
Opening mold x 1pc Piston x 1pc Funnel x 1pc Opening mold cleaning rod x 1pc Opening mold ejector rod x 1pc Cylinder cleaning rod x 1pc |
