Glass beads two part splitter

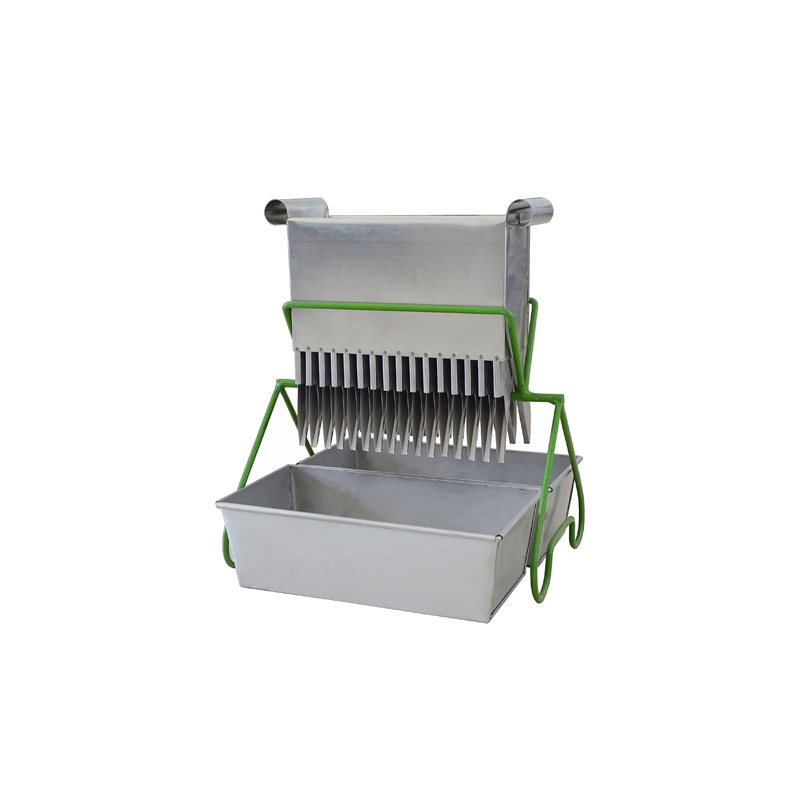

The duplicator is designed according to the provisions of the national standard GB474 “Preparation Method of Coal Sample”, which is an indispensable tool for shrinking specimen work. It consists of sealing shell, lattice groove, sample catcher, dustpan and so on.

Use the former dichotomizer to shrink coal samples, no mixing before shrinking, when feeding, the dustpan needs to be tilted to one side, in the length of the dichotomizer to swing back and forth, so that the coal samples are more uniform through the dichotomizer. After the reduction of any side of the coal sample.

1. Large: Splitting size ≤13 mm, number of grooves 16, width of grooves 32.5mm.
2.Medium: Splitting size ≤6 mm, number of grooves 18, width of grooves 15mm.
3. small: sample size ≤ 3 mm, the number of grooves 24, the width of the groove 7.5 mm, and is equipped with a sample bucket, dustpan and so on.
