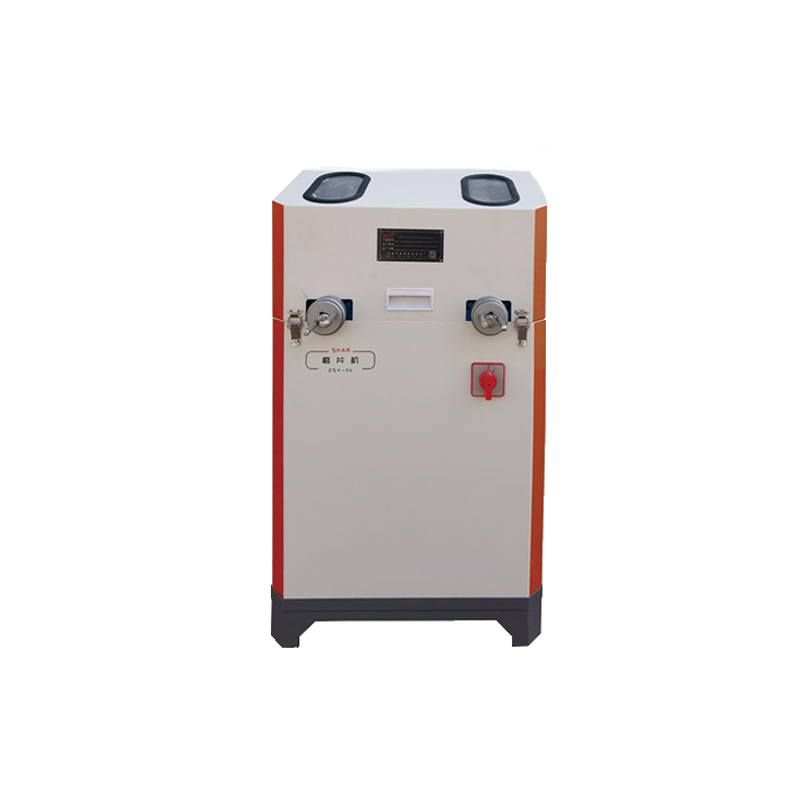

grinder

1、grinding wheel line speed: 12 meters / second
2、 grinding wheel specifications: G60APRI 170 * 40 * 32 36 grain
G60APRI 170*40*32 80 grains
3、 power supply voltage: three-phase 380V
4、 working size: diameter 160mm * 44mm, center height 214mm
5、Working wheel stroke:20mm
6、 clamping specimen size: length greater than 260 mm width maximum 36 mm thickness maximum 8 mm
7、 external dimensions: 600x600x900mm
8、 the net weight of the machine: 80 kg
