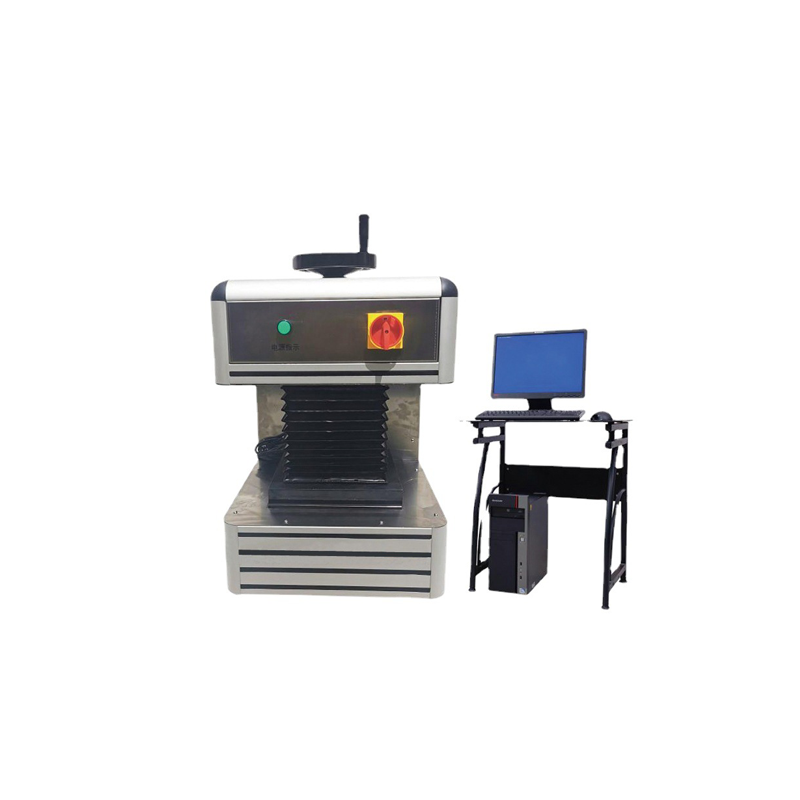

Heat Flow Meter Thermal Conductivity Tester

Thermometer method vacuum insulation insulation board thermal conductivity tester is according to the national standard GB/T 10295-2008 “insulation material steady state thermal resistance and related characteristics of the determination of the thermometer method” stipulated in the technical conditions of manufacturing equipment, this equipment is mainly used to detect the STP vacuum insulation insulation board thermal conductivity.

1. Heat flow range: (-600～600)W/㎡
2. Thermal conductivity measurement accuracy: ± 3%
3.Repeatability of thermal conductivity measurement: ± 1%
4.Temperature measurement range: (-5～95)℃
5.Temperature resolution: 0.01℃.
6.Temperature control accuracy: 0.05℃.
7. Specimen thickness: standard 25mm, range (5 ~ 40) mm
8. Specimen size: 300 × 300mm, 300 × 600mm, 400 × 600mm, 600 × 600mm and other sizes (can be customized larger than 600mm size)
9. Specimen flatness: 0.1 mm
10. Temperature of test chamber: standard temperature (23±2)℃.
11. Test chamber humidity: standard humidity (40 ~ 60) % RH
12. Power supply: AC 220V±10%, 2.0kW
