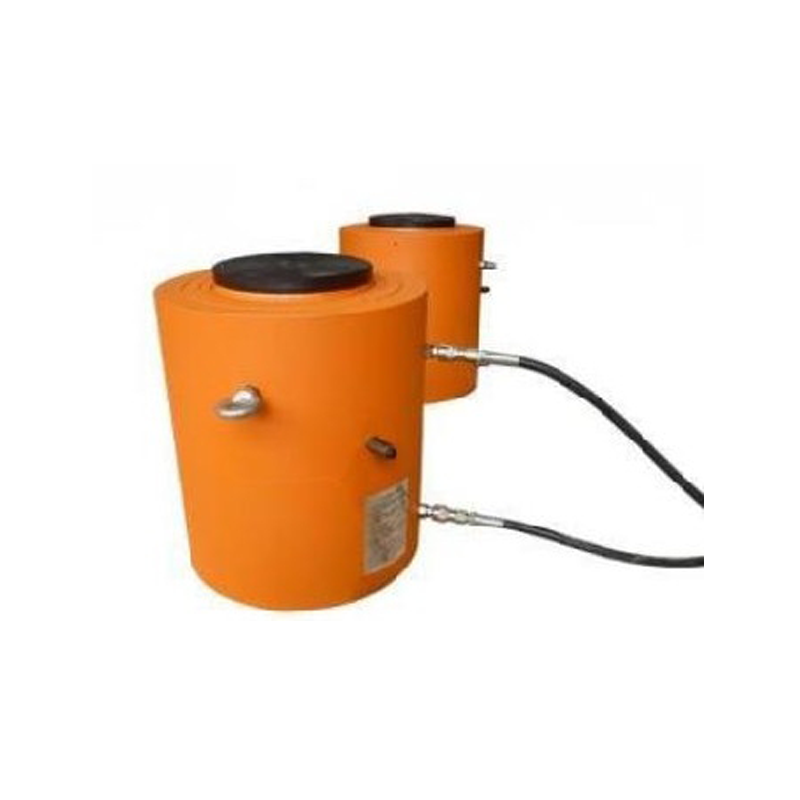

Heavy Duty High Pressure Pile foundation testing jacking pile load testing hydraulic jack
[rank_math_breadcrumb]
Heavy Duty High Pressure Pile foundation testing jacking pile load testing hydraulic jack
Features:
1.Double acting, controlled retracting.
2.Collar threads, plunger threads and base mounting holes enable easy fixturing.
3.Baked enamel finish for increased corrosion resistance.
4.Removable strap handles for unobstructed fixturing.
5.Built-in safety valve prevent accidenral over-pressurization.
6.3/8″-18NPT coupler and dust cap included on all models.
| Model | Outer diameter
(mm) |
Inner diameter
(mm) |
Stem diameter
(mm) |
Highly
(mm) |
Pressure
(Mpa) |
Weight
(Kg) |
| PLJ50 | 140 | 100 | 70 | 350 | 63.7 | 30 |
| PLJ100 | 180 | 140 | 100 | 360 | 65 | 55 |
| PLJ150 | 245 | 180 | 140 | 390 | 59 | 120 |
| PLJ200 | 273 | 200 | 140 | 390 | 63.7 | 145 |
| PLJ320 | 325 | 250 | 180 | 445 | 65.2 | 235 |
| PLJ500 | 426 | 320 | 250 | 500 | 62.5 | 460 |
| PLJ630 | 480 | 360 | 280 | 540 | 62 | 635 |
| PLJ800 | 560 | 400 | 320 | 590 | 63.7 | 970 |
| PLJ1000 | 610 | 450 | 360 | 600 | 63 | 1280 |
