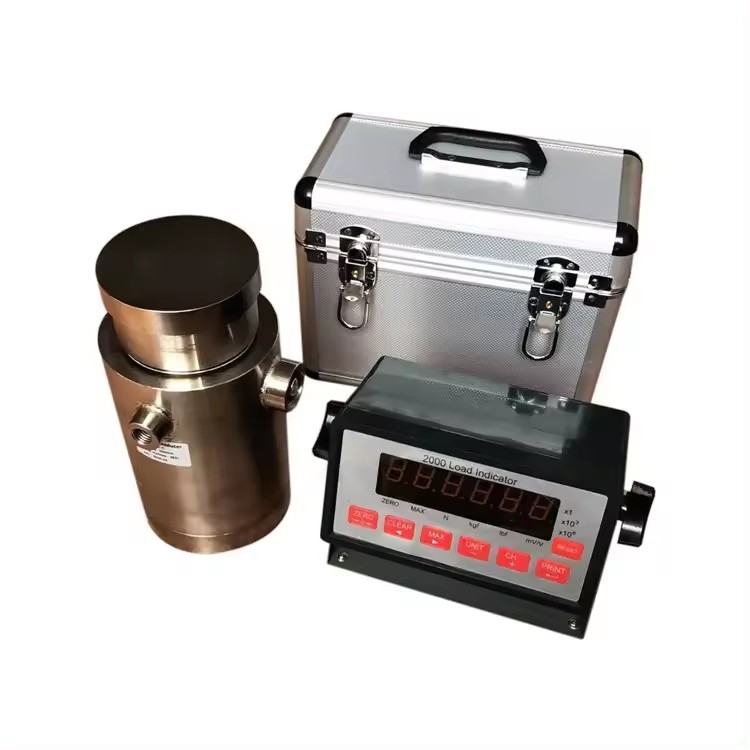

High Accuracy 200 ton Compression Force Load Cell

Product Description

These load cell calibrator is used to calibrate the load of testing machine and hardness tester, and also can be used for force measuring. It is digital display type with high accuracy of less than +0.3%, and easy to operate

Overall Precision：0.05(linearity+ hysteresis + repeatability)

Sensitivity：2.0 mV/V

Excitation Voltage：5 -12V DC (recommend 10V)

Creep (in 30 min)：±0.05%F.S/30min

Zero Balance：±1%FS

Input Resistance：380±10Ω

Output Resistance：350±3Ω

Insulation Resistance：≥5000MΩ
