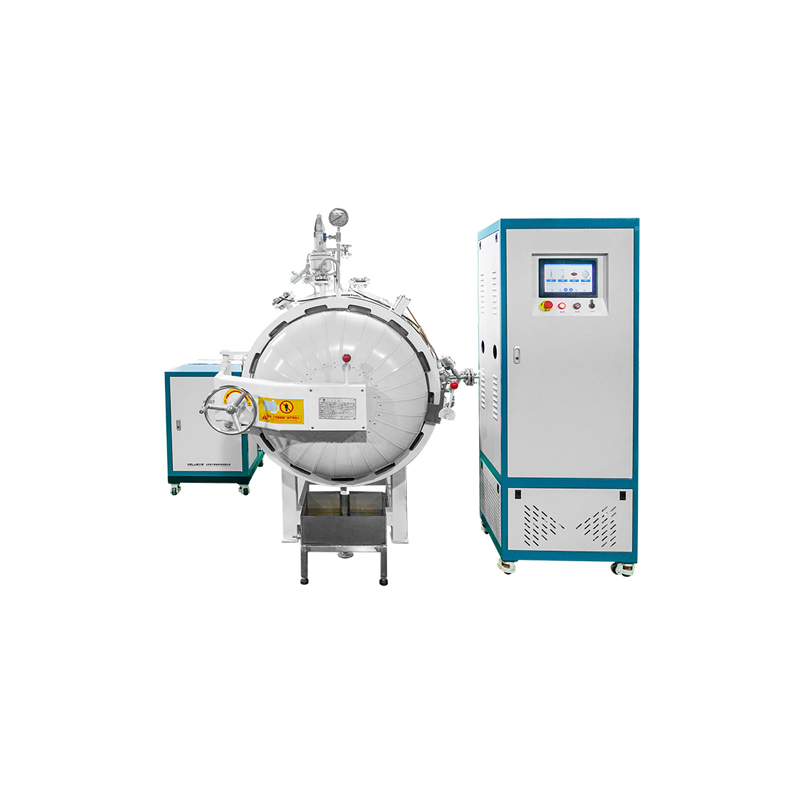

High Pressure High Concentration Carbonization Test Kettle

1.CO₂ concentration test range: 0 ~ 99.9%VOL
2.CO₂ Resolution: 0.01%VOL
3.CO₂ control accuracy: 2%F.S.
4. Pressure control range: -0.09MPa ~ 0.5MPa (high pressure version -0.09MPa ~ 1.0MPa)
5. Pressure control accuracy: 0.01MPa
6. Pressure sensor response time: ≤1ms
7. Temperature control range: 20 ℃ ~ 150 ℃
8.Temperature resolution: 0.1℃.
9.Temperature control accuracy: 1℃
10. Temperature sensor response time: ≤1s
11. Humidity control range: 10%RH ~ 95%RH
12. Humidity resolution: 0.1%RH
13.Humidity control accuracy: 3%
14. Humidity sensor response time: ≤5s
15.Thickness of kettle body: >8mm
16.Input voltage: AC380V±10%, 50Hz
17.Maximum power: 45kW
18.Carbonization kettle internal size: Φ800×800 (mm), Φ1000×1000 (mm)
19. Carbonization kettle external size: 1300×2100×1900 (mm), 1450×2800×1980 (mm)
20. Electric control box size: 600×600×1100 (mm)
21. Kettle space: 3
