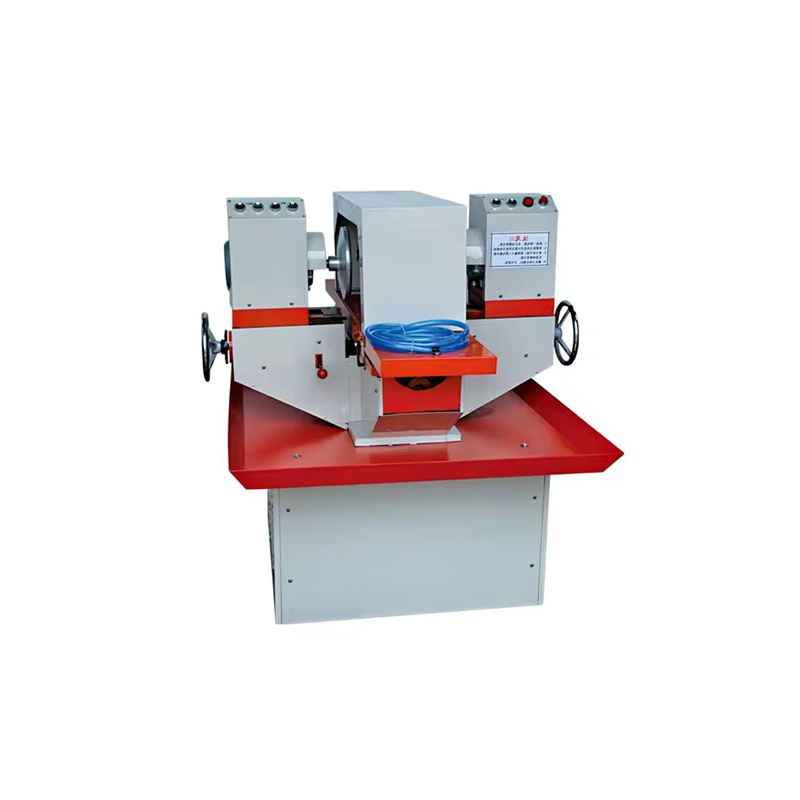

High quality cylinder head and cylinder block surface grinding machine

The double-end face grinder machine is the main equipment necessary for the production of standard samples for mechanical testing of various rock, mineral, concrete and other non-metallic solids.

1.Workbench motor power:0.55KW

2.Speed speed of :1,450 rpm

3.Grinding power head capability:1.1KWx2 unit rotation speed of 2,800 rpm

4.Minding wheel diameter:Φ200mm

5.Mable sample specification:(50-100mm clamture)

6.block:50x50x50-150x150x150mm

7.cylinder:Φ50-Φ150mm

8.Plane:± 0.05mm, Vertical ≤ 0.1mm;

9.finish:(by machining roughness) Ra3.2

10.Automatic grinding feed:0.08-0.4mm adjustable

11.Cooling device:tap water cooling
