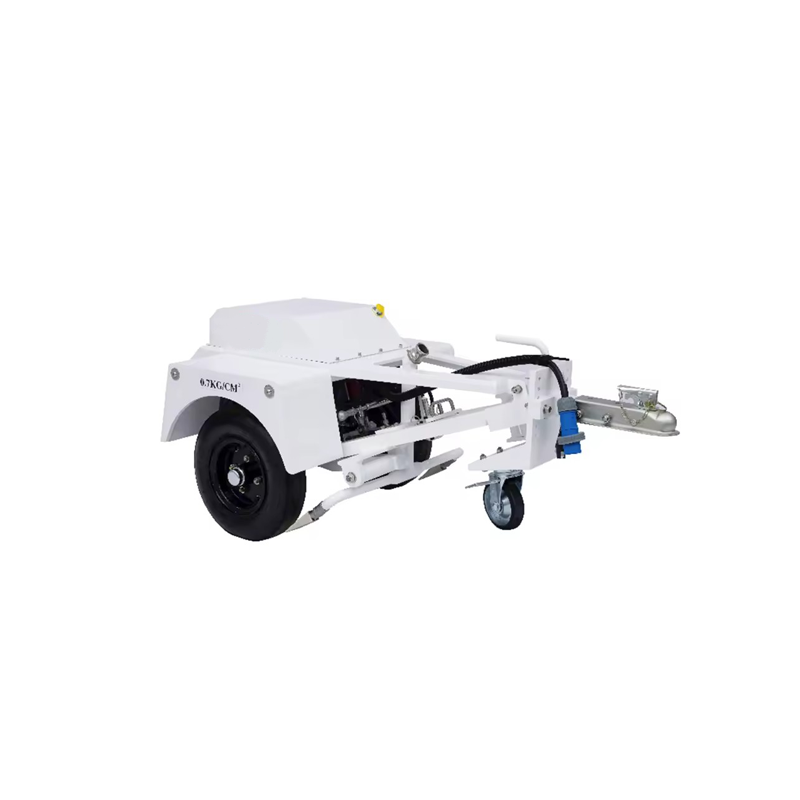

High Quality Measuring Equipment Pavement Continuous Friction Coefficient Tester

1.trailer size：Length: 1553mm Width: 960mm Height: 570mm

2.trailer coupler height：350±12mm

3.Trailer Operating Weight：including mass but excluding support wheels 254kg

4.weight distribution：Right Wheel – 77.5 ± 1kg at calibrated height

5.test wheel adjustment：Two-wheel adjustment: each adjustment 7.5° left and right

6.rear wheel：53.5 kg

7.tire pressure：Friction coefficient test wheel 0.7 ± 0.035 kg/cm2
distance test wheel 2.1 ± 0.137kg/cm2

8.traction speed：Test speed range: 0~100km/h

9.International standard airport runway test speed：65km/h and 96km/h

10.China standard pavement inspection test speed：50km/h

11.Relative error of friction force indication：±2%

12.Temperature Test Accuracy：±1%
