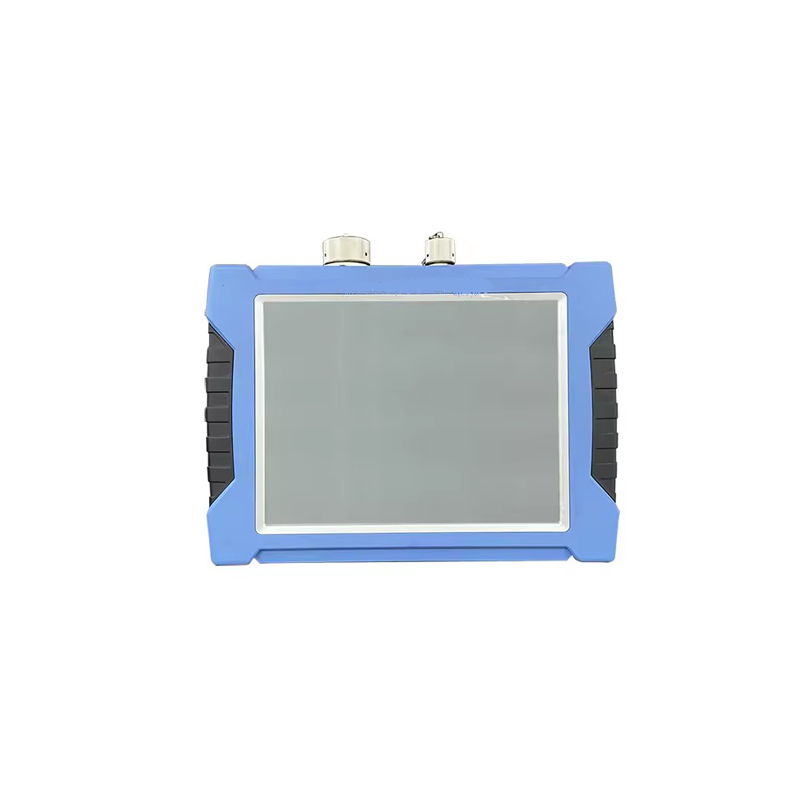

High Strain Dynamic Pile Tester and Pile Driving Analyzer

1.Size/Weight：L255×W180×H56mm / 1.8kg with battery

2.Touch screen：8.4-inch TFT true color LCD with 800 × 600 resolution

3.Temperature Range in Operating：-5 ºC ~ +40 ºC

4.Temperature Range in Storage：-20 ºC ~ +70 ºC

5.Power：6 working hours (internal battery)

6.Controlling System：Industrial computer

7.Converter：3×16 bit A/D converter

8.Sampling Interval：5 to 65536 μs

9.Dynamic Range：≥ 100dB

10.Data Storage：3000 piles
