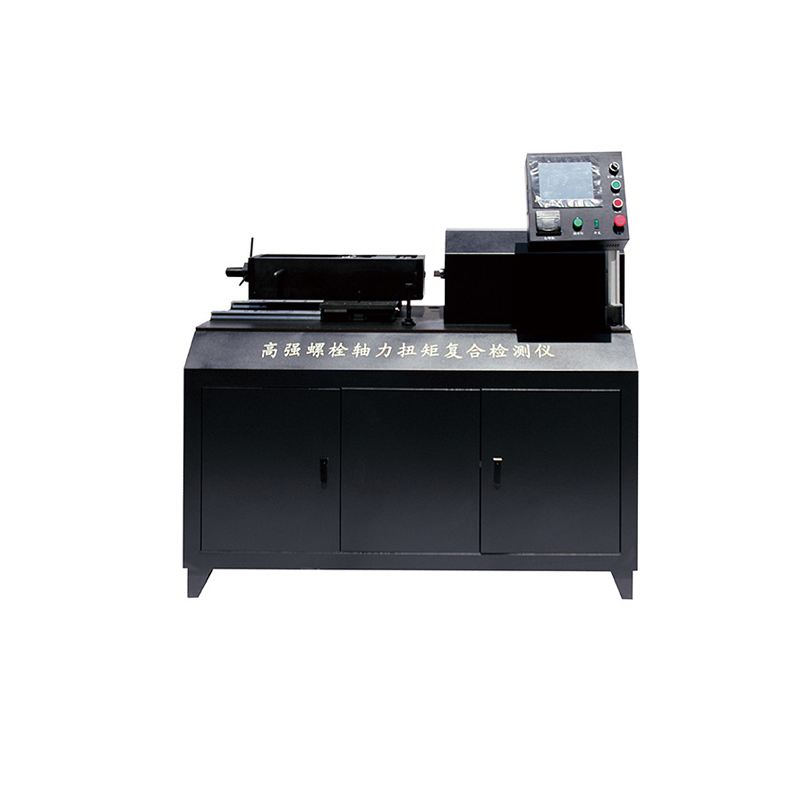

High Strength Bolt Axial Torque Tester
High Strength Bolt Axial Torque Tester
1. Display: 8-inch touch screen (with USB interface)
2. Measurement and control system: WIN32 multi-touch operating system
3. Display value error: ±1%
4.Repeatability: 1%
5. Axis force range: 50-500kN
6.Shaft force resolution:0.01
7.Torque range:200-2000Nm
8.Torque resolution:0.1
9.Can do both axial force and torque test.
10. Large hexagonal measurement specifications: M12, M16, M20, M22, M24, M27,
M30
11. Torque shear measurement specifications: M16, M20, M22, M24, M27, M30
12. Bolt length: 60-250mm
13. Data storage: 10,000 groups of data
14.Motor speed:4-5r/min
15.Voltage:380V
16.Weight:340kg
17.Overall dimension:1800*650*1300mm
