High Strength Bolts Draw Test Fixture M10-M30 Wedge Load Test Fixture For Sale
High Strength Bolts Draw Test Fixture M10-M30 Wedge Load Test Fixture For Sale
The high-strength bolt test fixture is carefully designed and manufactured by our company according to the relevant Chinese standard GB/T3098.1-2000, using special materials. It can carry out bolt wedge load test and common tension test, bolt guaranteed minimum tension load test and nut guaranteed load test by combining in different ways. The fixture is clamped into the jaws of the universal testing machine by connecting the tie rod, so that various tensile tests can be carried out. The ordinary hydraulic universal testing machine does not need to add or change other devices.
|
Technical Parameters
|
Specifications
|
|
Maximum tensile force of wedge load test
|
696kN (M30-10.9s)
|
|
Bolt minimum tensile load test
|
583kN (M30-10.9s)
|
|
Nut guaranteed load test
|
583kN (M30-10.9)
|
|
Bolt guaranteed load test
|
466kN (M30-10.9s)
|
|
Remarks: High-strength bolt test fixtures above M30 require special orders
|
|
|
Fixture Configuration
|
Quantity
|
|

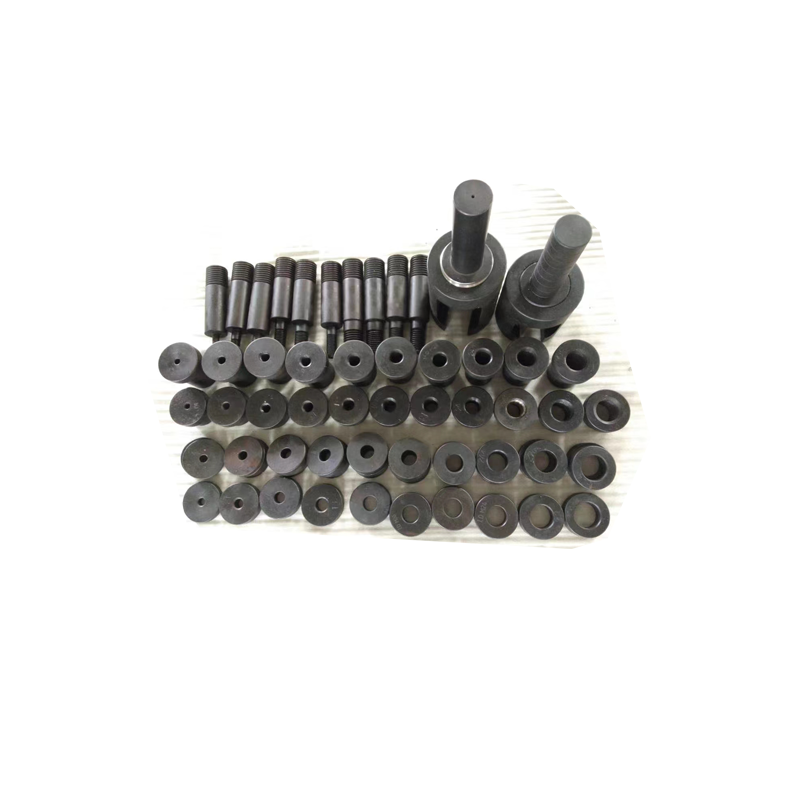

Clamp body (including tie rod)
|
1 pair (4 pieces)
|
|
Flat pad M10\M12\M14\M16\M18\M20\M22\M24\M27\M30
|
1 piece each (10 pieces total)
|
|
Tension rings with internal thread M10\M12\M14\M16\M18\M20\M22\M24\M27\M30
|
2 pieces each (20 pieces total)
|
|
Wedge load block M10\M12\M14\M16\M18\M20\M22\M24\M27\M30
|
2 pieces/pair (20 pieces total)
|
|
Nut test mandrel M10\M12\M14\M16\M18\M20\M22\M24\M27\M30
|
1 piece each with one M33 mandrel general tension ring (10 pieces total)
|
|
M20 below 10º, 6º
|
–
|
|
M22 (including M22) above 4º, 6º
|
–
|
|
Total
|
65 clamps
|
