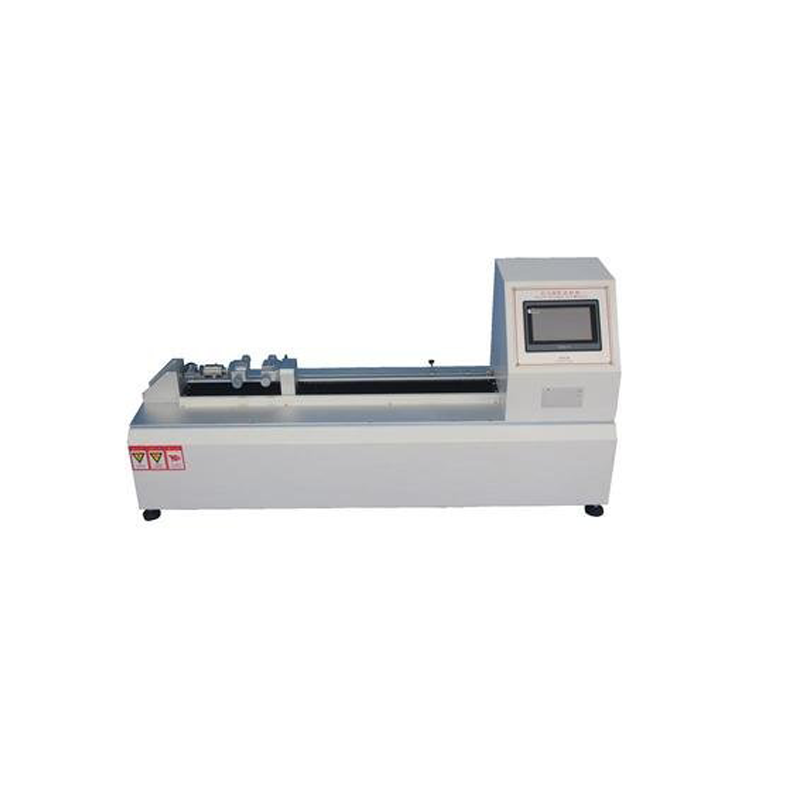

Horizontal tensile testing machine

Summary

• China supplier Horizontal tensile testing machine is suitable for rubber, paper, color printing packaging, adhesive tape, luggage and bags, textile, pharmaceutical, daily chemical, food, wire and electronic industries.

• The physical properties of various materials, finished products and semi-finished products can be tested. Various kinds of clamps can be purchased for tensile, compressive, tensile, compressive, bending, tearing, peeling, adhesion, shear and other tests.

• China supplier Horizontal tensile testing machine is a newly designed and developed micro – computer tension (compression) force testing machine.

• ZONHOW has completely changed the traditional material testing machine with heavy, complicated operation and single performance.

• The structure is made of aluminum extruded sealing plate with high precision, low resistance, no gap screw and guidepost.

• The data acquisition and operation speed of the measurement and control system is high.The product performance is stable and reliable, the measurement accuracy is high, the operation is simple and easy to understand.
• Technical parameters


  Capacity selection: 50,100,200 kg optional Display: LCD/touch screen display Force measurement accuracy: better than + / – 1.0% Force resolution: 1/10,000 Effective force range: 1~100%F.S Accuracy of deformation indication: better than + / – 1.0% Test speed range: 50 ~ 500mm/min, adjustable at will Test Max. Travel: Max. 500mm, no jig Effective test space: cha 120mm Power unit switching: KGF, gf, N, kN, Ibf Stress unit switching: MPa, kPa, KGF /cm2, Ibf/in2 Change of deformation units: mm, cm, in Stop mode: safety setting of upper and lower limits, emergency stop key, program force and extension setting, sample failure detection Machine size :30 x 26 x 100cm
