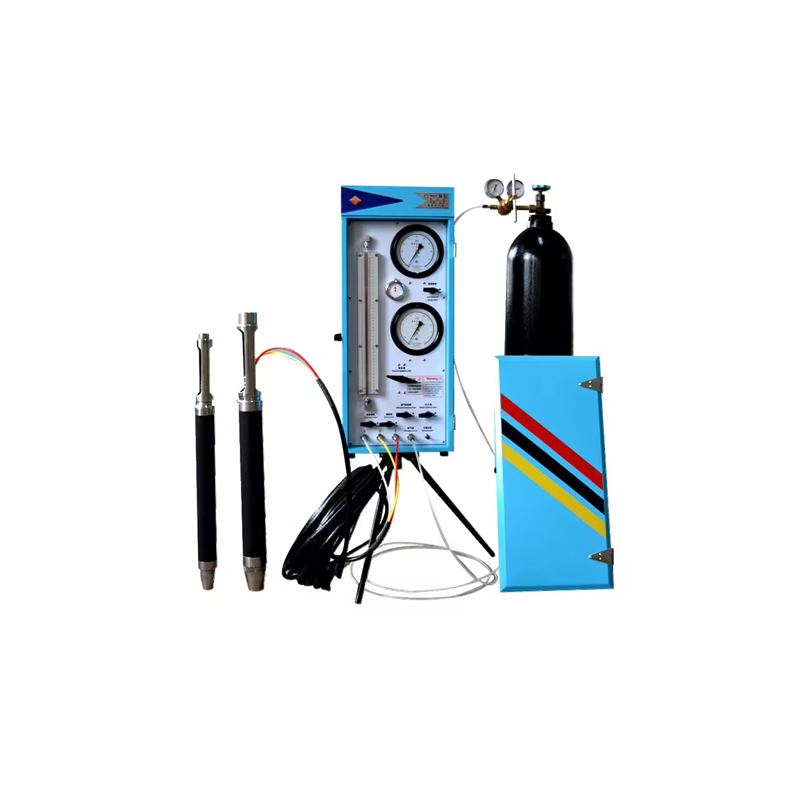

In-Situ pressure meter test for soil
[rank_math_breadcrumb]
In-Situ pressure meter test for soil
| Model | IPY-3 | IPY-4 | IPY-5 |
| Cross-sectional area of test water tube | 11.75cm ² | 14.19cm ² | 14.19cm ² |
| Volume of test tube | 435 cm ³ | 638cm ³ | 638cm ³ |
| Max. Test pressure | 2.5Mpa | 4Mpa | 5.5Mpa |
| Naked dia. | Dia.50mm | ||
| Dia. With metal shield | Dia. 60mm | ||
| Length | 800mm | ||
| Test length | 250mm | ||
| Required borehole dia. | Dia. 52~Dia. 58mm | ||
| Original volume of pressuremeter chamber | 491 cm ³ | ||
| Min.reading of pressure gauge | 0.005Mpa | ||
| Pressure source | High-pressure nitrogen pipe | ||
| Host dimension | 830×360×220mm | ||
| Host weight | 28kg | ||
