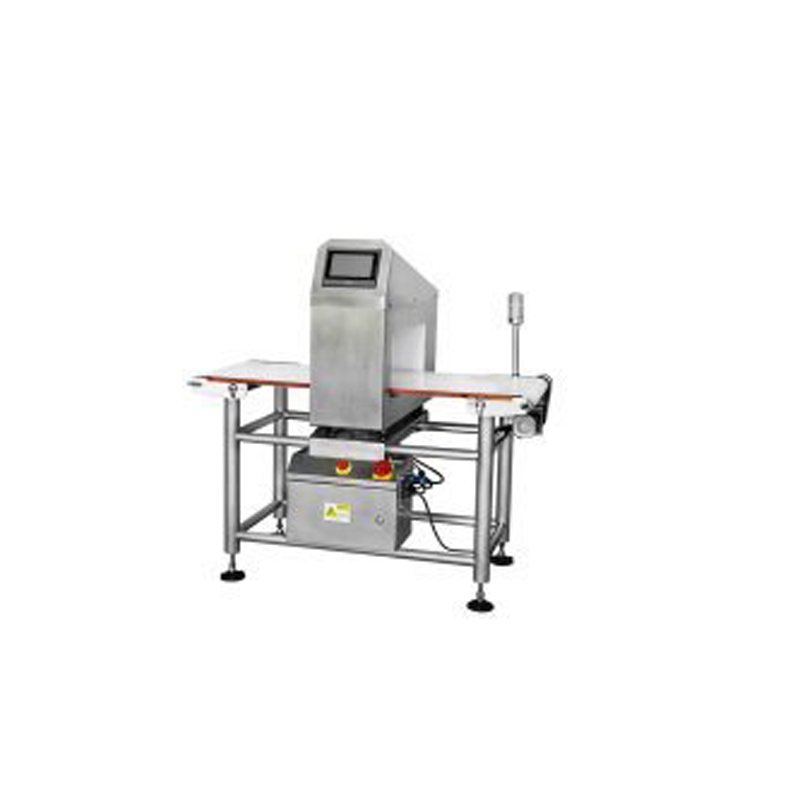

Industrial Digital Food Metal Detector
Industrial Digital Food Metal Detector
Food Needle detectors are widely used in various food industries such as seafood, aquatic products, frozen food, quick-frozen vegetables, convenience food, pet food, etc.
Standard Parameter:
|
Series |
3008 |
3012 |
4008 |
4010 |
4012 |
4015 |
4020 |
4025 |
|
|
Through width (mm) |
300 |
300 |
400 |
400 |
400 |
400 |
400 |
400 |
|
|
Passing height (mm) |
80 |
120 |
80 |
100 |
120 |
150 |
200 |
250 |
|
|
Belt width (mm) |
270 |
270 |
370 |
370 |
370 |
370 |
370 |
370 |
|
|
standard Detection Sensitivity |
Fe(Φmm) |
0.6 |
0.7 |
0.6 |
0.6 |
0.7 |
0.8 |
1.0 |
1.2 |
|
Non-Fe(Φmm) |
0.8 |
1.0 |
0.8 |
1.0 |
1.0 |
1.2 |
1.5 |
1.8 |
|
|
SUS304(Φmm) |
1.0 |
1.2 |
1.0 |
1.2 |
1.2 |
1.5 |
2.0 |
2.5 |
|
|
Conveyor length (mm) |
1200 |
1200 |
1500 |
1500 |
1500 |
1500 |
1500 |
1600 |
|
|
Belt height from the ground (mm) |
750±50 can customize |
||||||||
|
Protection level |
IP67 |
||||||||
|
Number of memory |
100 kind |
||||||||
|
Display method |
LED LCD (or touch screen customization) |
||||||||
|
Operation method |
Touch button input (touch optional) |
||||||||
|
Conveyor belt material |
Food grade PVC belt (PU belt) |
||||||||
|
Alarm mode |
Alarm stop, buzzer alarm or reject mechanism optional |
||||||||
|
Belt speed |
28M\MIN Cons. (Variable varieties of speed, can be customized frequency control) |
||||||||
|
Machine material |
Carbon steel paint or stainless steel 304,fit forHACCP.GMP.CAS |
||||||||
|
Machine weight |
About 280KG |
||||||||
|
Motor |
Taiwan high-power motor can transport weight 1-15KG |
||||||||
|
Power supply |
AC220V±10% 50-60HZ (can be customized AC110V or 380V) other optional |
||||||||
|
Using environment |
Temperature: -18 ~ 50 ° C, relative temperature: 30 ~ 90 ° C |
||||||||
| NOTE 01 probe detection window, the size of the whole machine can be customized according to customer needs. The higher the height of the detection window, the lower the detection sensitivity, and the wider the detection window, the lower the detection sensitivity. | |||||||||
| NOTE 02 Detection sensitivity is the detection sensitivity obtained by placing the test card in the center of the conveyor belt through the detection channel. The actual detection sensitivity will vary depending on the product being tested or the conditions of use. | |||||||||
