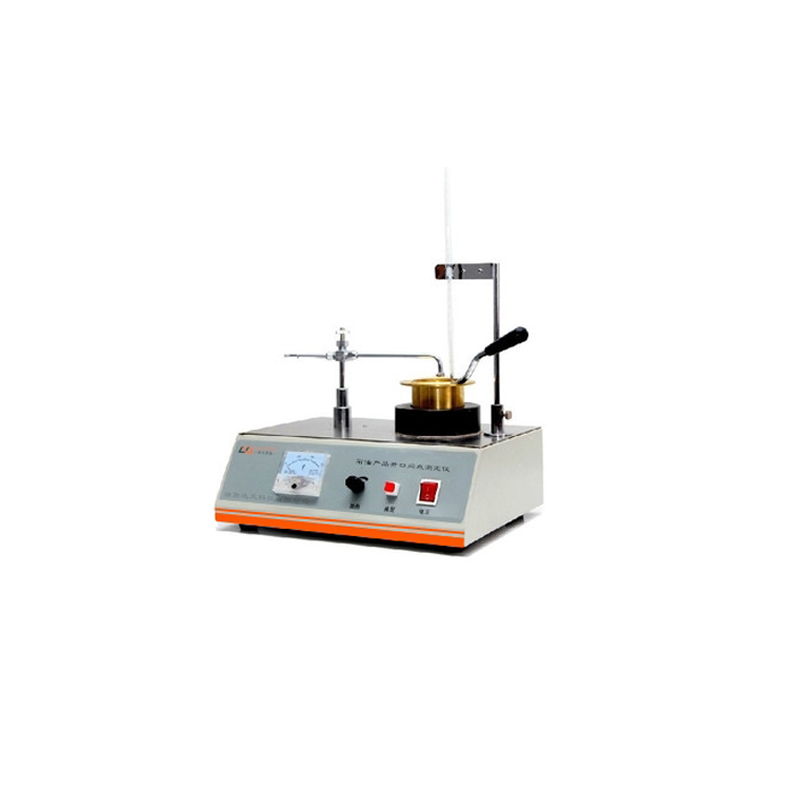

Iwintesting Cleveland Open Cup Flash Point Tester

This instrument is designed and made as per standards GB/T3536-2008 Petroleum Products – Determination of Flash and Fire Points – Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.

Main technical specifications

1. Power supply: AC(220±10%)V, 50Hz.

2. Heating device: Quartz tube furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W.

3. Test flame applicator: It applies the test flame automatically.

4. Thermometer: (-6~400)℃. It is the same as thermometer ASTM 11C.

5. Igniting device: (1) Ignition source: coal gas(or civil gas,the same below)

(2) Flame diameter is 3.2mm~4.8mm

6. Ambient temperature: (-10∼50)℃

7. Relative humidity: ≤85%

8. Maximum power consumption: 650W

9. Dimension: 350mm×290mm×350mm (thermometer is not included)
