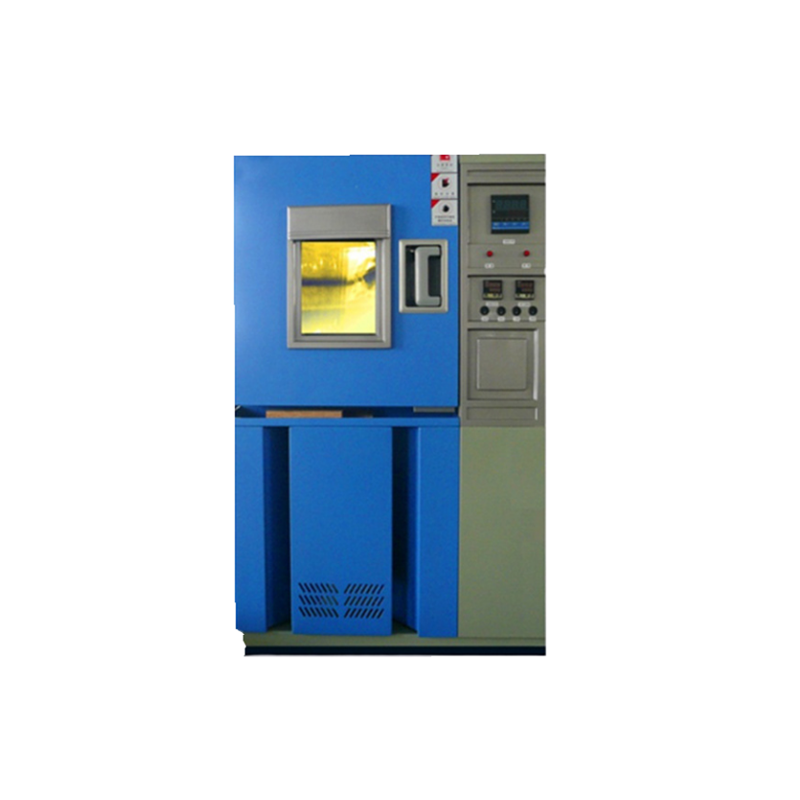

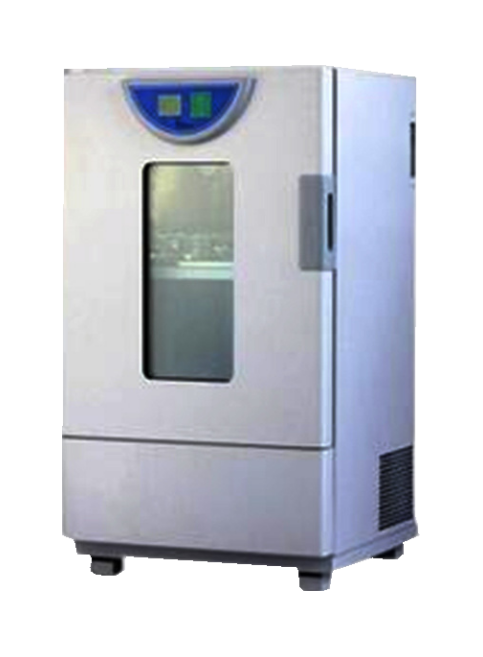

Laboratory concrete rubber plastic thermal aging test chamber

Product Description

The aging chamber series is used by scientific research institutions and factories for thermal aging tests of plastic materials (rubber, plastic), electrical insulation and other materials.The maximum temperature of the box is 200℃, and the operating temperature can be from 50℃ to the maximum temperature.Within this range, the operating temperature can be chosen arbitrarily.After selection, the temperature can be increased through the automatic control system in the box.Rapid aging test.There are two low-speed rotating sample turntables in the laboratory, so that each sample can withstand the same temperature environment in the laboratory, thereby obtaining more consistent test results.The results of the aging test depend on the temperature adjustment accuracy and the temperature distribution in the chamber.The aging box is fully researched based on the above two points and manufactured with reference to similar foreign products.

Technical specifications Number name Technical indicators 1 Voltage 220V 50 Hz 2 Control temperature room temperature ~ 200 ℃ 3 Heating power 3000W 4 Turntable speed 15 turns ± 5 turns 5 Working size 450x450x500 mm
