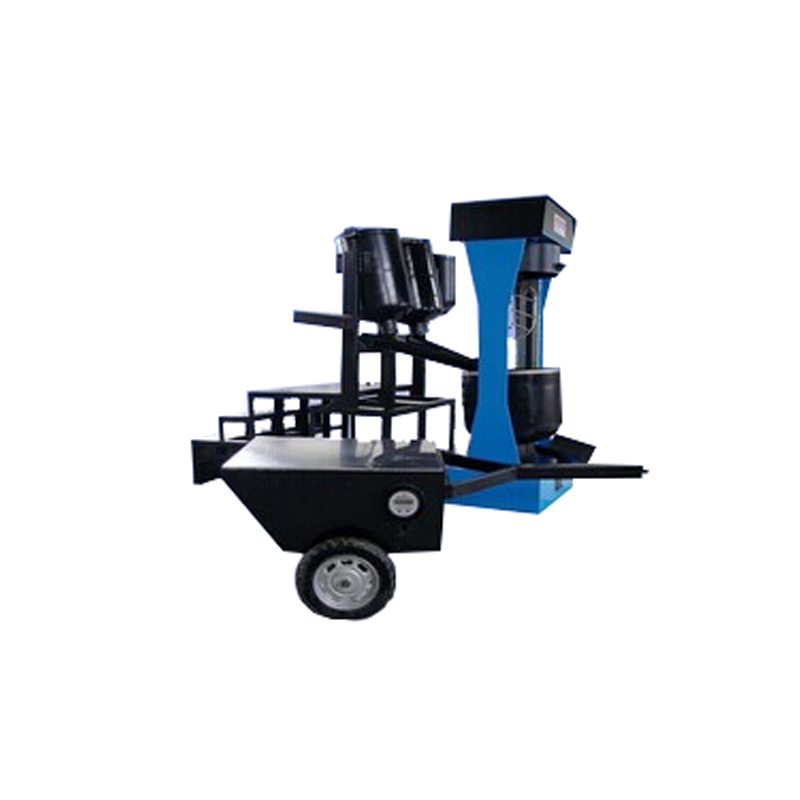

Large-scale asphalt mixing machine

1、Mixing volume: 50 liters;
2、Temperature control range: room temperature～200℃;
3、Temperature control precision: ±5℃;
4、 time control range: 0 ~ 999 seconds;
5、Time control precision: ±0.1 seconds;
6、Rotational speed of mixing paddle: 67 revolutions/min, 42 revolutions/min;
7、 mixing motor: 380 volts, 2200 watts, 1400 rpm, 50 Hz;
8、 lift motor: 380 volts, 750 watts, 1400 rpm, 50 Hz;
9、Ambient temperature: -5℃～+50℃;
10、 ambient humidity: ≤ 80% (relative humidity);
11、Operating power supply: 380±10% volts, 30 amps, 50 hertz
(three-phase four-wire system with zero line);
12、Dimensions of the main machine: length 1166㎜×width 750㎜×height 2000㎜;
13、 the weight of the machine: 1200 kg.
