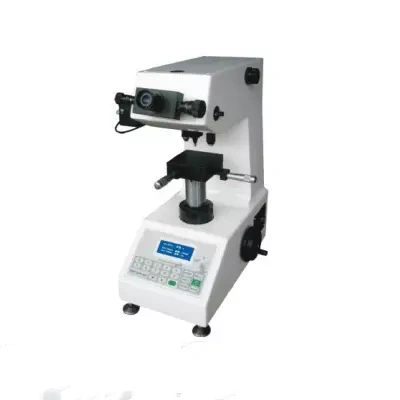

LIYI High Accuracy Digital Metal Micro Vicker Hardness Tester Equipment Price Gemstone Hardness Tester

   Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.

Characteristics :

1. Test force load, dwell, and unload is automatic, it is avoid the error by manual;high test precision ;good repeatability;

2. The dial reads the hardness value directly, indicator responses sensitively, show the hardness value accurately, the test value is more accurate than national standard;

   3. One-time casted molding shell, stable structure and it is not easy to be out of shape. It can work under harsh environment;  the shell coating adopted car paint technology with white color. it has strong scratch resistance capability and still look bright as new after use many years;

4. Factory directly supply, we have products develop &design & produce ability, all the parts provide life-time replacement and maintenance service.

Hardness Scale

HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Conversion Scale

HRA, HRB, HRC, HBS, HBW, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK

Test force

gf

10, 25, 50, 100, 200, 300, 500, 1000

N

0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8

Operation

Focus

Manual focus

Loading

Automatic loading – dwell – unloading test force

Turret

Automatic turret

Magnification

10X Digital eyepiece; 10X, 40X Objective lens

Total magnification: 100X (observation), 400X (measuring)

Indenter

Standard Micro Vickers diamond indenter 136°±0.5°

Dwell time

1-99s (unit: 1 second)

Data display

5.6 inch digital touch screen

Data storage

Yes, turn-off machine memory will automatic save

Data output

Built-in printer

X-Y table

Size: 100x100mm; Max. Move range: 25x25mm

Light source

Halogen lamp (image more real and clear, light source strength is adjustable )

Test space

85x115mm (HxD)

Weight

Net weight: 52kg;  Gross weight: 61kg

Size

Machine size: 490*185*515mm; Packing size: 630*430*860mm (LxWxH)
