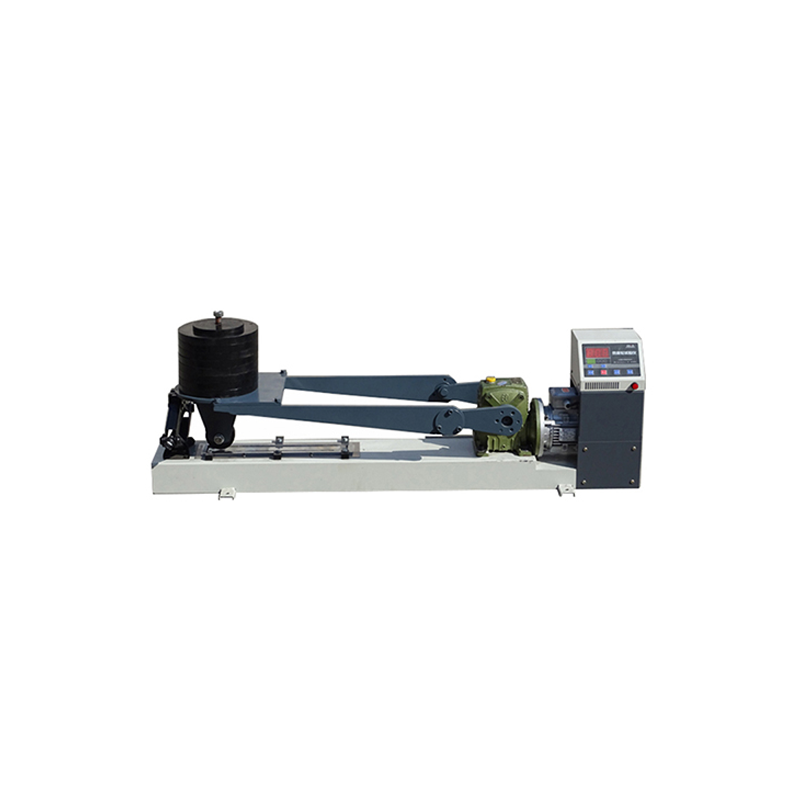

Load Wheel Tester

The Load Wheel Sticky Sand Tester is suitable for tests to control the presence of excess asphalt in thin slurry mixtures, controlling the upper limit of the amount of asphalt to be used.

1、Power supply voltage: 380V Crushing speed: 44 times / min
2、Motor power: 250W
3、load wheel rubber hardness: HRC60-HRC70
4、 test mold size: 6.4mm (Ⅱ type grade with) 12.7mm (Ⅲ type grade with)
5、Internal size of test mold：380×50mm
6、External size of test mold：406×76mm
7、Steel cover size：353×36×3mm
8、Internal size of sand frame：355×38×5mm
