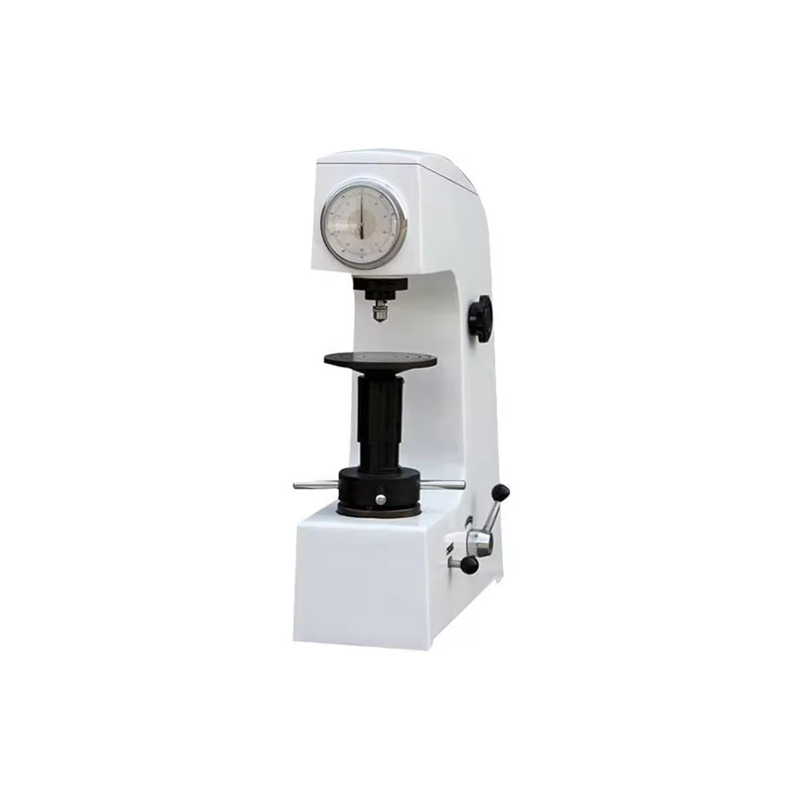

Manual Rockwell hardness tester

Semi-automatic hardness testers for Rockwell, Superficial Rockwell, Brinell and Vickers hardness test methods in compliance with ASTM and ISO standards. Iwin Series are bench hardness testers for tough or lab applications.

1.Test  force：60,100,150kgf    588.4,980.7,1471N

2.Measuring range：20-88HRA,20-100HRB,20-70HRC;

3.Maximum allowable height of the test piece：170mm

4.The distance from the center of the indenter to the machine wall：135mm

5.Hardness Resolution：0.5HR

6.Dimensions：466*238*630mm

7.net weight：65kg
