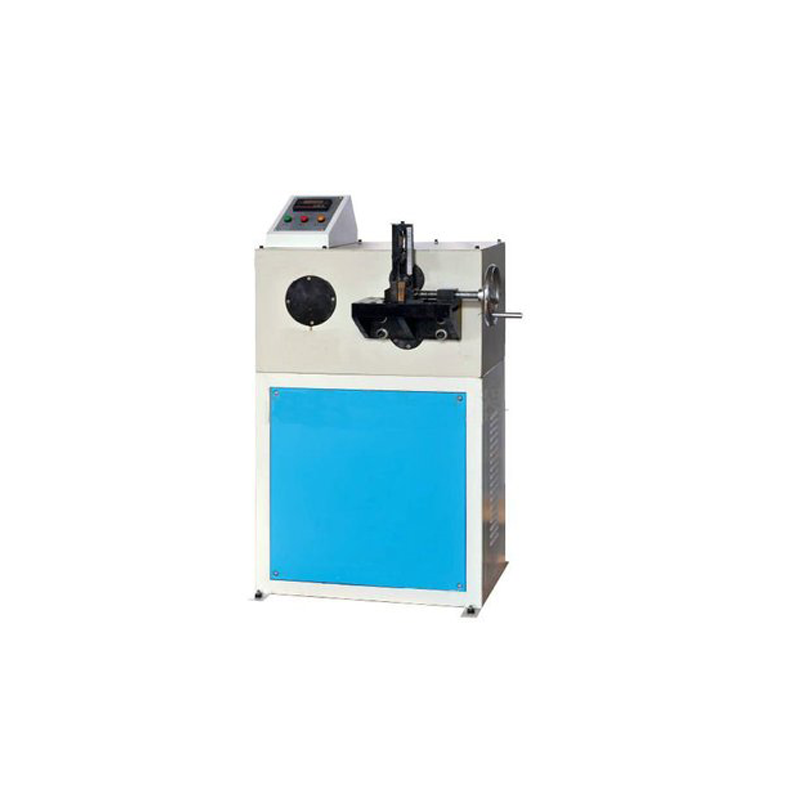

Metal Wire Repeated Alternating Bending Testing Machine Wire Alternating Bending Tester

Description

This tester is mainly used for metal wire rod repeated bending test, to test metal wire rod bearing

of plastic deformation performance and the defects in the repeated bending test. Equipped with

plank clamping device, which can also make test on plank sample.This machine is widely used in

steel, construction industry, and steel wire, wire and cable and other production manufacturers.

It is suitable for φ3-φ8 metal wire, equipped with special toolings, which still can do other standard

metal bending test.

Parameter

1 Sample diameter                       Φ1-φ8mm

2 Sample length                          150-200mm

3 Bending angle Degree                ±90°

4 Bending speed time /minute          ≤60

5 Numeration range time                0-99999

6 Motor power                             1.1  Kw

7 External dimensions                   1000*600*330mm

8 Tester weight                           about 210kg

Working conditions

1. Room-temperature 10-35 ℃

2. In the stable basis, level to relocate.

3. In no vibration circumstances

4. No corrosive substance around

5. No apparent electromagnetic interference

6. Power supply voltage fluctuation range does not exceed the rated voltage 380V plus or minus 10;

7. Tester surrounding should have some spare space
