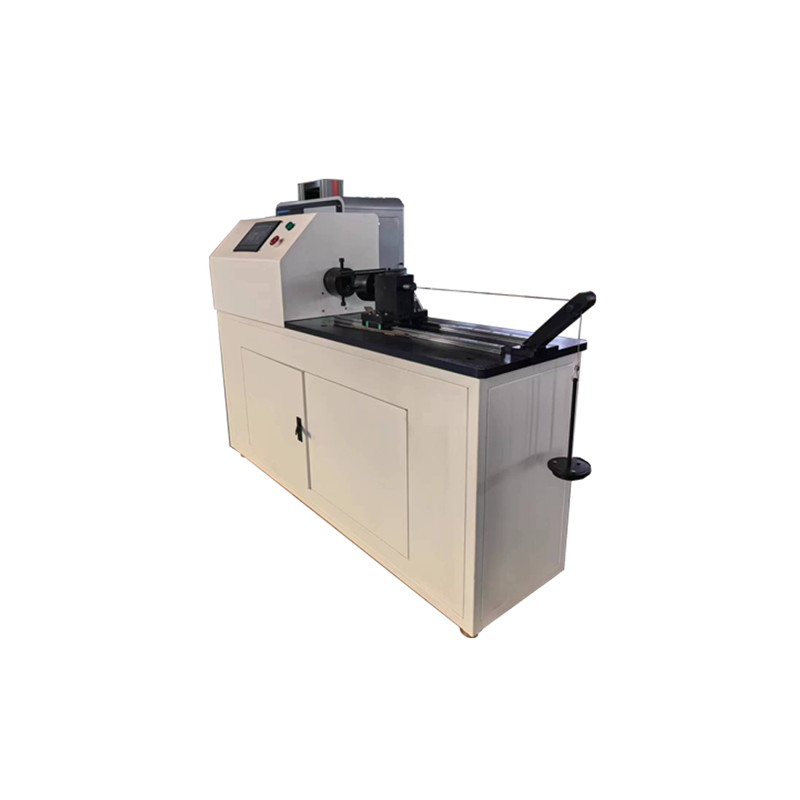

Metal Wire Torsion Tester

Metal wire torsion testing machine is my company’s latest research and development of a new type of digital display, horizontal structure of the torsion test equipment. By the loading, transmission, force and other components, applicable to the nominal diameter of ¢ 0.1-¢ 10mm steel wire, copper, aluminum and its alloy wire torsion performance test. Rotating speed 30 60 90 120 180 300 rpm adjustable, mainly to determine the wire in one-way, two-way torsion in the ability to withstand plastic deformation and show the surface of the wire and internal defects, and is equipped with torsion of the required attachments, accessories, to achieve a multi-purpose machine.

1、Maximum distance between two collets: 500mm
2, jaw hardness: HRC55-65
3、Tester working noise: <70db
4、Wire diameter: ¢0.1-¢10mm
5、Twisting speed: 30/60/90/120/180/300rpm
6、Power supply: 220V 50Hz
7、Twisting direction: positive or negative rotation
8、Environment and working conditions:
a.Temperature 10℃-35
b. Placed on a solid foundation
c. In a vibration-free environment
d. No corrosive medium around it
