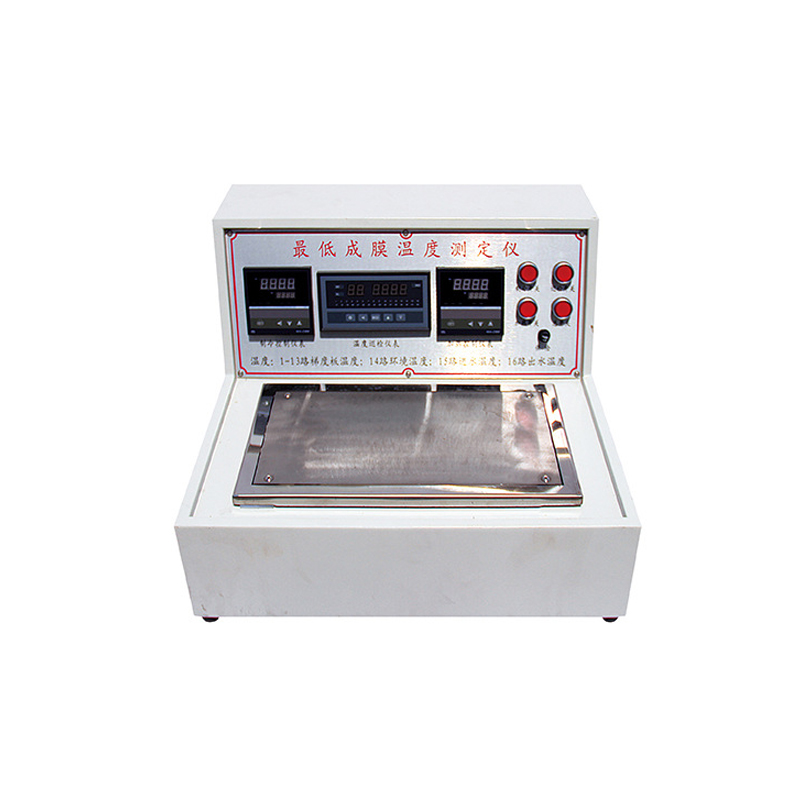

MFT Low Film Formation Temperature Tester

1. Gradient plate working temperature range: cold end of the lowest -10 ° C – hot end of the highest 70 ° C
2. Gradient plate detection points: 13
3. Gradient interval: 20mm
4. Test paint tank: flat plate type (with a film applicator, the film is more uniform)
5. Inspection table display: 16 points, of which 1 ~ 13 points for the working gradient temperature, 14 points for the instrument ambient temperature, 15, 16 points for the cooling water import and export temperature
6. Power supply: 220V 50Hz AC wide
7. Voltage (three-phase power supply, well grounded)
8. Cooling water source: ordinary municipal water supply
9. Instrument dimensions: L520xW520xH370mm (maximum part)
10.Instrument weight:31kg
