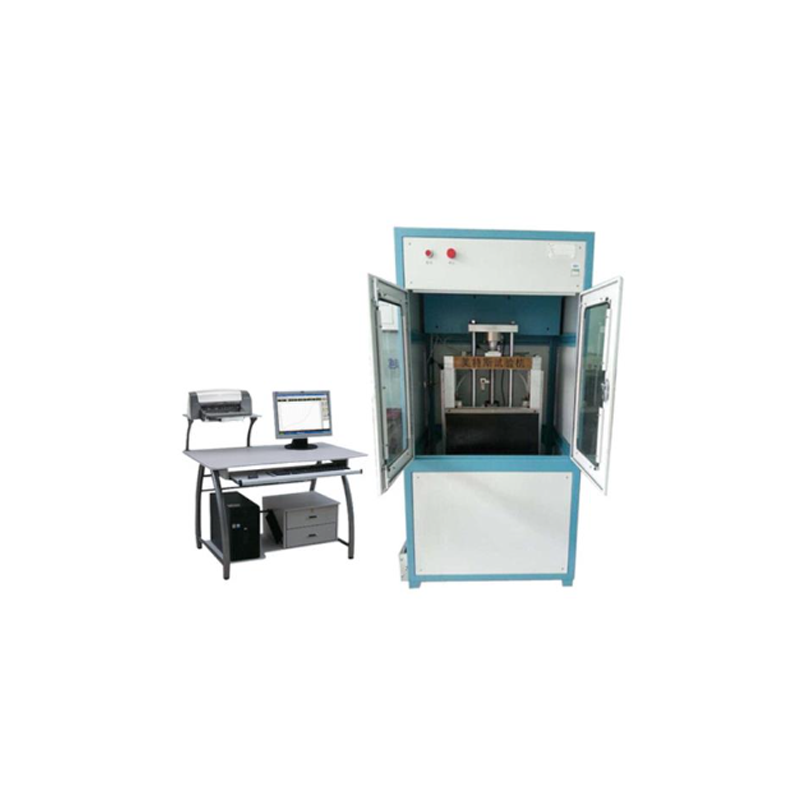

Microcomputer control fatigue testing machine

1.Specifications Model: CMTPL-30A
2.Measuring range of test force: 0.4%~100%FS (full scale)
3.Accuracy of test force: within ±0.5% of the displayed value.
4. Resolving power of test force: ±1/300000 of the large test force, the whole process is not graded, and the whole process resolution is unchanged.
5. Accuracy of deformation: within ±1% of the displayed value.
6. Fatigue test cycle: 3 million times
7. Displacement resolution: 0.015um
8. Force control rate adjustment range: 0.005~5%FS/s
9. Force control rate control accuracy: rate <0.05%FS/s, within ±2% of the set value, rate ≥0.05%FS/s, within ±0.5% of the set value.
10. Displacement rate adjustment range: 0.001~500mm/min.
11. Displacement rate control accuracy: within ±0.2% of the set value.
12.Measurable test size: 100X60X8mm
13. Host size (LxWxH): 800x600x1600mm
14. Power supply: 220V/50Hz, ±10%.
15.Main machine weight: 300kg
