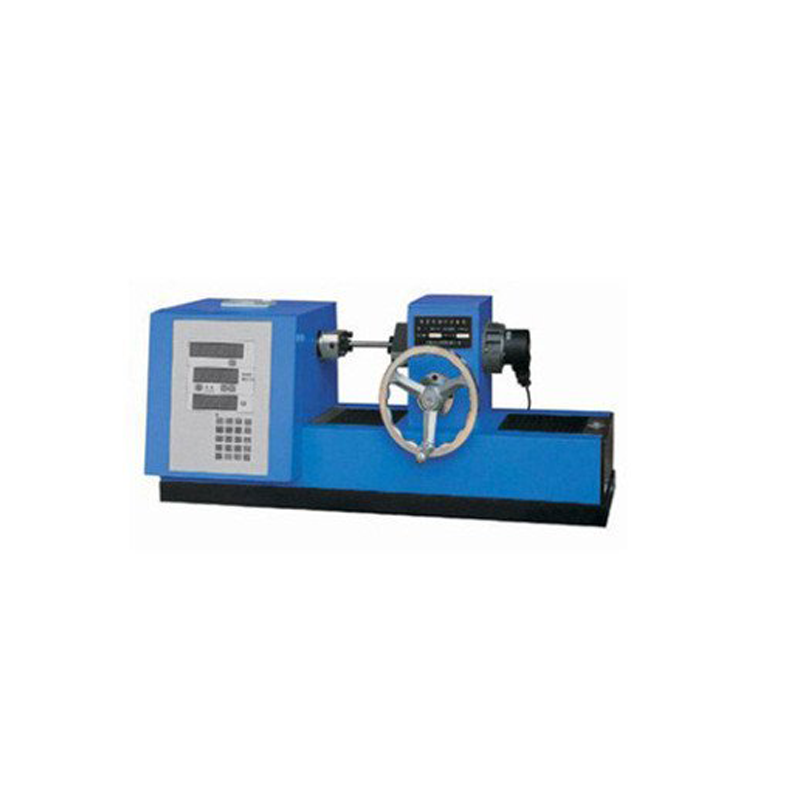

Microcomputer Control Material Torsion Testing Machine

Categories:

wire torsion testing machine name: microcomputer control material machine for testing torsion

The main technical parameters

The product model

NJS-100/NJS-500/NJS-1000/NJS-2000/NJS-5000

Load measurement range

1-100N.m

5-500 N.m

10-1000N.m

20-2000N.m

50-5000N.m

Precision torque measurement: Level 1 (+ 1%)

Torsion angle measuring relative error: + 0.5%

The range of torsion angle measurement: From 0 to 100000 degrees

Torsion angle resolution: 0.01 degrees

Reverse speed: 0~720 /min

Sample specification:

Phi 5- Phi 10mm

Phi 5~ Phi 20mm

Phi 5~ Phi 25mm

Phi 6~ Phi 30mm

Phi 10~ Phi 40mm

Test space (can be customized)

0-320mm

0-500mm

0-500mm

0-600mm

0-500mm

Power supply: 380V 50HZ
