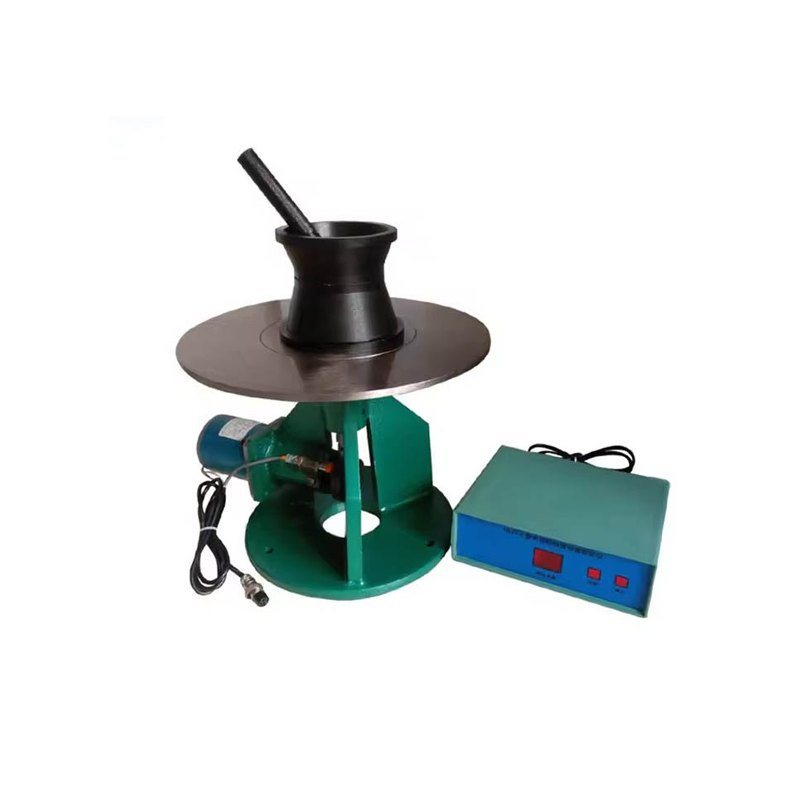

Motorized cement flow table for cement mortar consistency vibrating table

Used to determining the consistency of mortar & building line. Offering ASTM & EN standard, manual & motorized. A specimen contained in a cone mould is placed on a metal surface which is then raised & dropped from a known height after releasing the specimen from the mould.

Dimension (mm)：380 (L) x 300 (W) x 245 (H)          Diameter of Table：300 mm Cast Iron

Height of Drop：10 mm                                          Flow Table Weight：4.2 to 4.5 kg

Flow Mould：Top Ø70, Base Ø100, 60 mm (H)        Approx. Weight：15kg

Dimension：400×400×690 mm                            Power：220V, 50Hz
