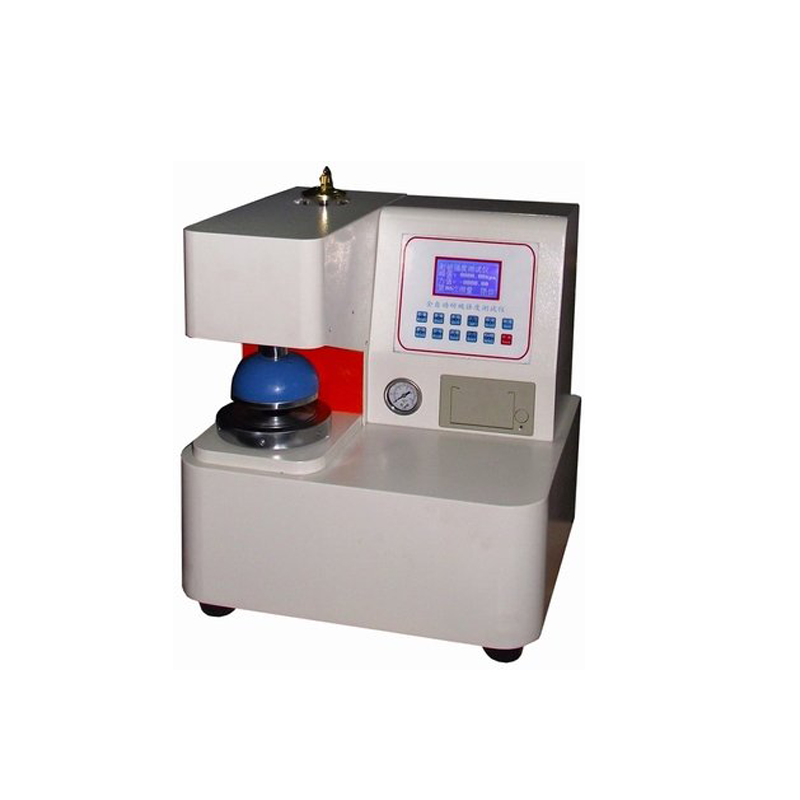

Mullen Paper Burst Strength Testing Machine Cardboard Corrugated Box Bursting Tester
[rank_math_breadcrumb]
Mullen Paper Burst Strength Testing Machine Cardboard Corrugated Box Bursting Tester
| model | Electronic Bursting Strength Tester |
| Capacity | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
| Unit | psi, kg/cm^2 |
| Accuracy | ± 0.5% |
| Pressure Range | 250~5600kpa |
| Speed of Compression | High Pressure 170± 10ml/min |
| Specimen Clamping Force | >690kpa |
| Oil | 85% Glycerin; 15% Distilled Water |
| Sensing method | Pressure Transmitter |
| Indicating Method | Digital |
| Display | LCD |
| Material of the Ring | Stainless Steel SUS304 |
| Opening in Upper Clamp | 31.5 ± 0.05 mm Diameter |
| Opening in Lower Clamp | 31.5 ± 0.05 mm Diameter |
| Motor | Anti-vibration Motor 1/4 HP |
| Dimension (L×W×H) | 430×530×520 mm |
| Weight | Approx. 64 kg |
| Power | 1 , AC220± 10%, 50 Hz |
| Power Capacity | 120W |
| Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
