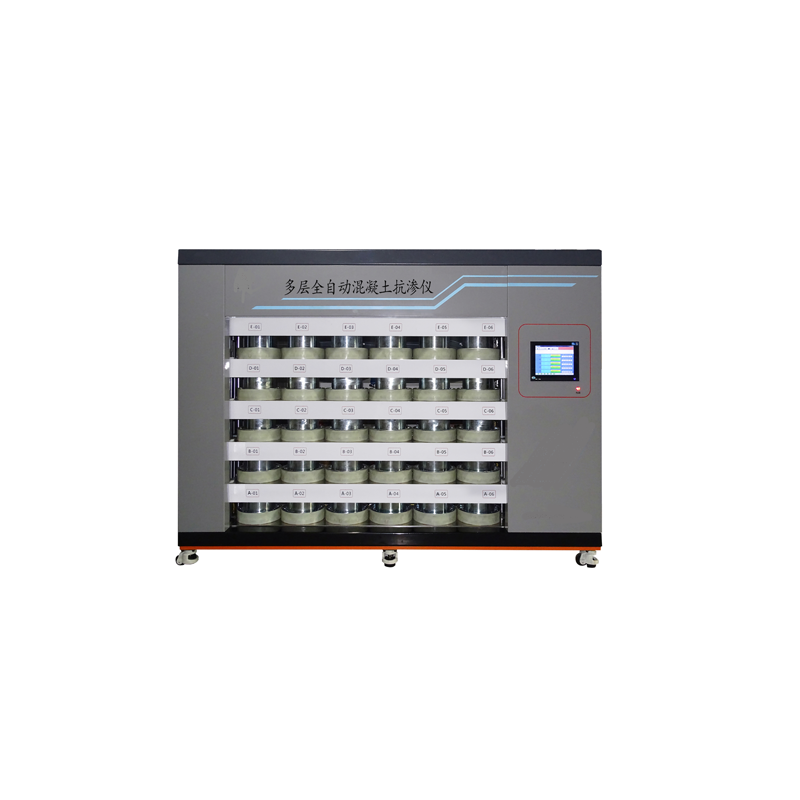

Multi-Layer Automatic Concrete Permeability Tester

1. Measuring range: 0-2MPa
2. Voltage: 220V
3. Relative Error of Tester Oscillator: ±1%. 9.
4. Relative error of tester value repeatability: 1%.
5. Relative error of return-to-zero: 0.5%
6. Minimum display accuracy of water pressure: 0.001MPa
7. equipment stabilized pressure starting difference (penetration height method): ±0.025MPa
8. equipment stabilized pressure starting difference (step by step pressurization method): ± 0.005MPa
9. the top specimen placement height: 1.4 meters
10. the bottom of the specimen placement height: 0.30 meters
11 Overall dimensions: 2720 * 910 * 2000mm mm
12. Occupied area: about 2.5 square meters
13. Net weight: about 1.7T
