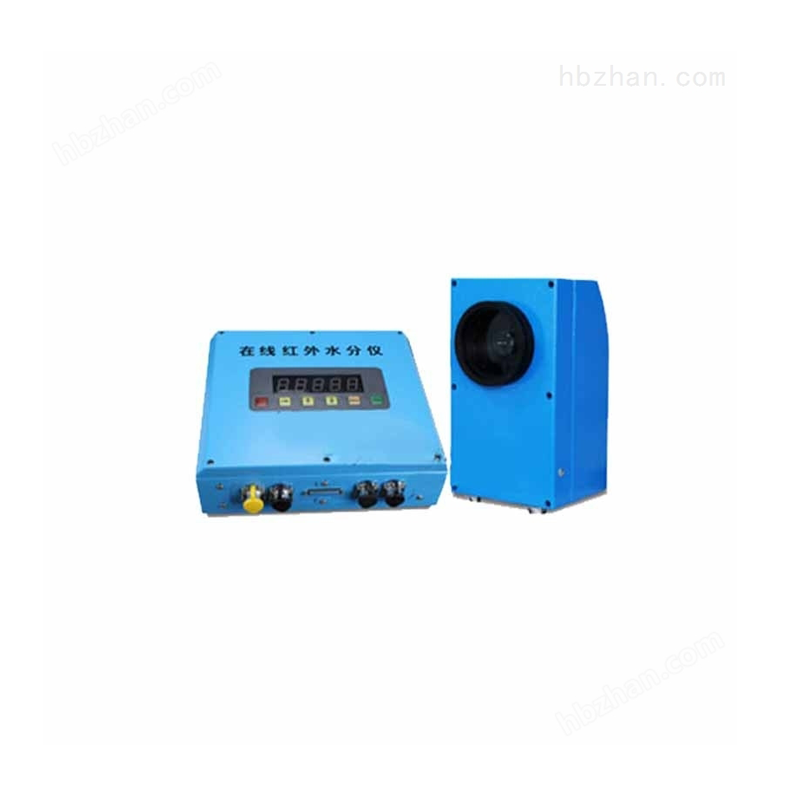

NIR Online Moisture Tester for grains Chemical raw materials food chips moisture meter

Working principle:

The hydrogen-oxygen bond in water molecules will absorb near-infrared at a specific wavelength. At a specific wavelength, the near-infrared energy reflected back is inversely proportional to the near-infrared energy absorbed by the water molecules in the material. The volume is calculated based on the energy loss. The moisture content of the material.

The device probe is an intelligent component that performs all system measurement and processing functions internally and directly outputs calibrated measurements. It can also generate display content on microcomputers and touch computers.

Main Specifications:

1.Measuring range: 0–1%

2.Accuracy: ≤ ± 0.001%

3.The distance between the test equipment and materials: 250±100mm

4.Ambient temperature: -30 ~ 50 ℃

5.Operating humidity: 5-90%

6.Repeatability: 0.1%

7.Response time:0.3-30 seconds(Adjustable)

8.Filtering range:0-2.5%

9.Power supply:AC220V  50HZ

10.Equipment power: 150W

11.Light interference: Ambient light intensity changes do not affect the measurement results

12.Amient Temperature Effect: Automatic temperature compensation.
