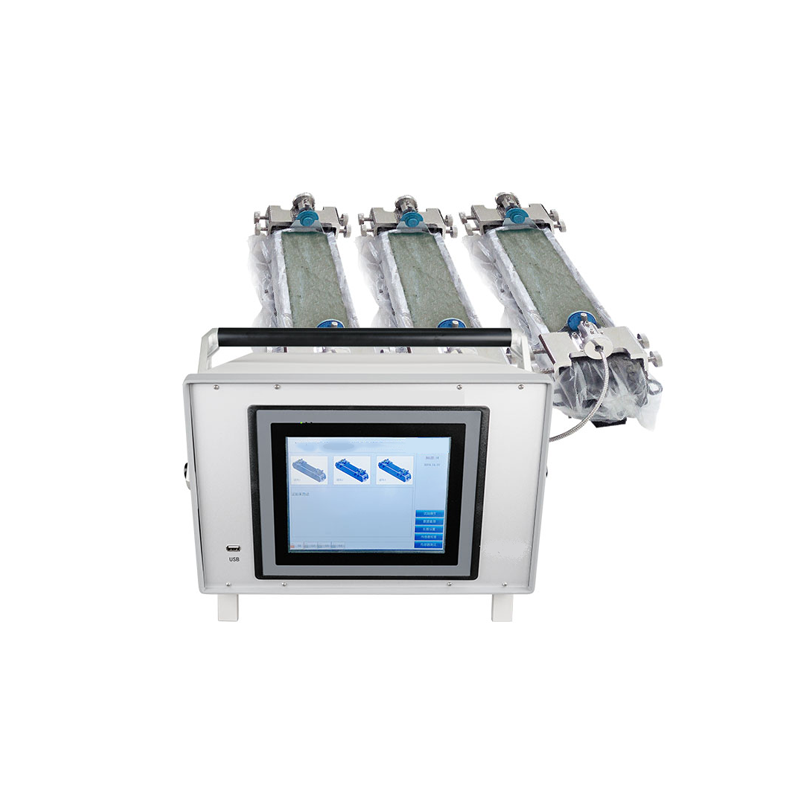

Non-contact method shrinkage expansion deformation tester

1. number of test groups: 1 group (3 test pieces)
2. Sensor type: eddy current
3. Displacement test range ≥3mm 4.
4. Measuring accuracy <2µm
5. operation screen: 8 inch touch screen
6. Power failure memory: power failure restart, data automatically restore the memory, the test can be continued
7. Data presentation: real-time drawing test curves, quick view data list.
8. Test data backup: 16GU disk
9. Data export format: Excel file
10, the device has 21 calibration function
11. Input voltage: AC220V±10%, 50Hz
12. Dimensions of mainframe: 350×340×325 (mm) 13.
13. Weight of main unit: 9.7kg
