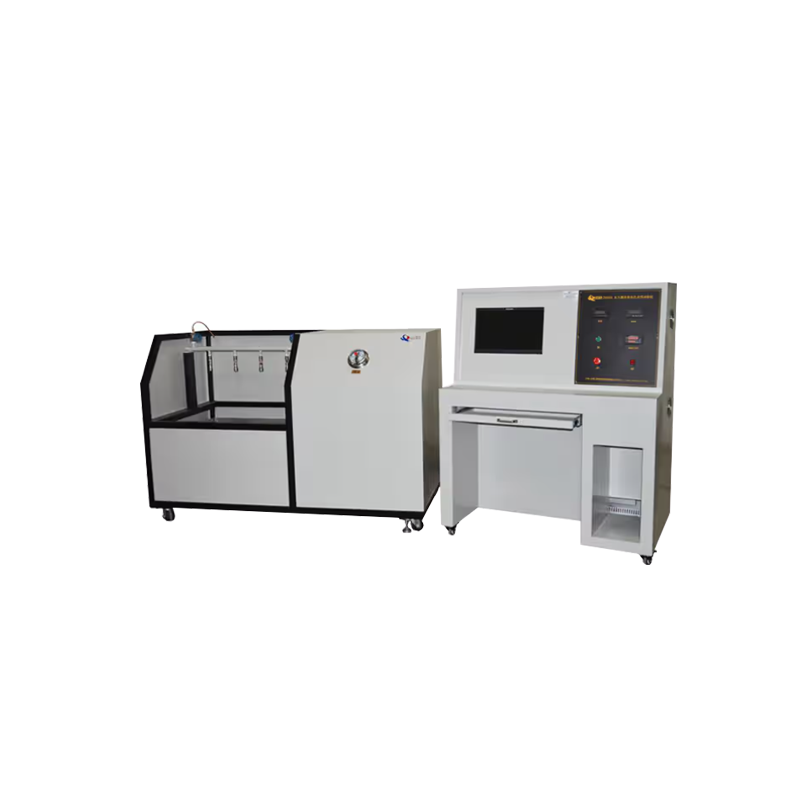

Nozzle splash tray water spray volume test chamber

Fire sprinkler head splash tray up and down water spray volume test chamber is in accordance with national standards GB5135.1-2019 “automatic sprinkler system Part 1: sprinkler head” requirements of the design and manufacture of the test chamber is used in conjunction with fire centralized water supply system.
The design of the equipment is simple and generous in appearance, the test operation is simple and convenient, and the data is displayed on a large screen, which makes the results of the test process clearer.
Product use: The test chamber is used to determine the percentage of the total sprinkler volume of the downward sprinkler volume of the fire sprinkler nozzle. It is applicable to all kinds of fire sprinkler heads.

Technical Parameters：

1.equipment size:(LxWxH)1.2mx0.8mx1.53m
2.Desktop electronic scale:200KG-(500*400)
3. Control mode: automatic
4. Test medium: water
5. Collected water volume measurement error:≤±5%
6.Flow test range:50~140L/min
