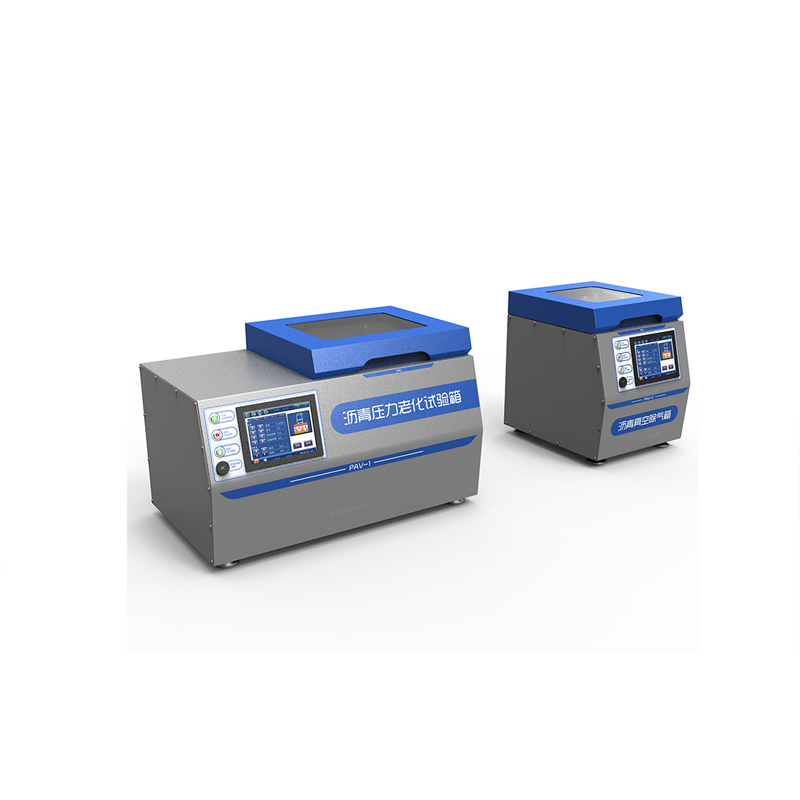

PAV Asphalt Pressure Aging Test System

(A) PAV-1-1 asphalt pressure aging box
1、Power supply
Power supply voltage: AC220V ± 10% 50HZ
Rated power:1100W
Rated current of fuse:10A
2、Pressure vessel
Working volume:13L
Working medium: air
Rated working temperature:110°C±0.5°C
Rated working pressure: 2.1MPa
Design pressure: 2.2 Mpa
Hydraulic test pressure: 2.75 MPa
Safety valve opening pressure: 2.15 Mpa
Safety rupture disc burst pressure: 2.6 MPa
3、Pressure Control Instrument Accuracy:±0.01MPa
4、Temperature and time control instrument precision: ±0.1°C
Time segment:64x1080min

5、Dimensions:630x450x500mm(LxWxH)
6、Control mode: full-automatic touch screen control
(B) PAV-1-2 asphalt aging vacuum box
1、Power supply
Power supply voltage: AC220V±10% 50HZ
Rated power: 900W
Fuse rated current: 10A
2、Vacuum container
Working volume:13L
Working medium: air
Rated working temperature: 170±0.5°C
Rated working pressure: absolute pressure 15kPa
Pressure control mode: touch screen control
3、Temperature and time control instrument
Temperature control accuracy: ±0.1°C
Time control mode: touch screen
4、Dimensions:560x390x350mm(LxWxH)
