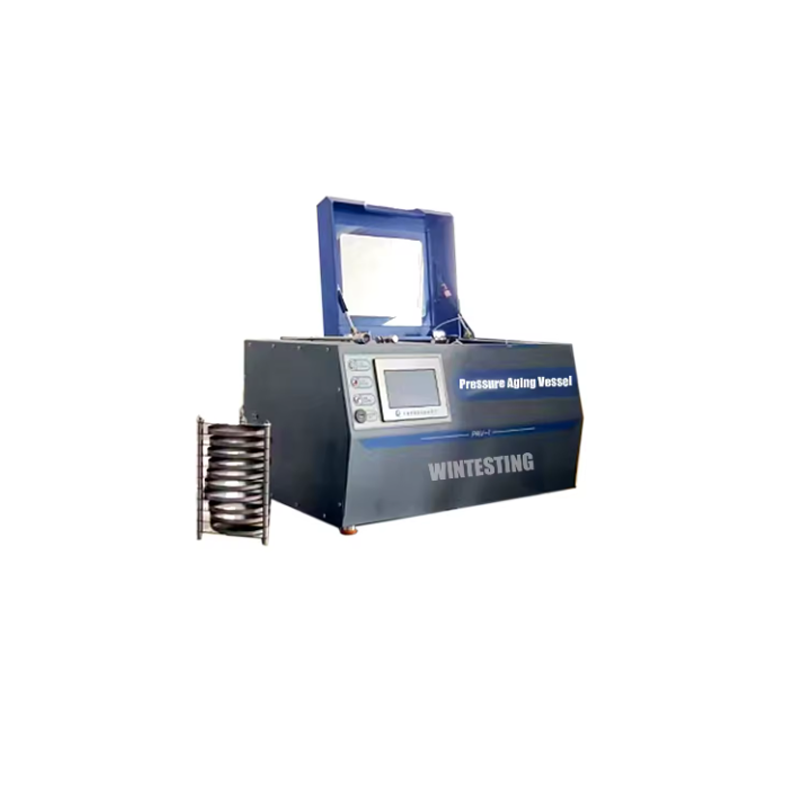

PAV Test for Bitumen Asphalt Pressurized Aging Vessel
PAV Test for Bitumen Asphalt Pressurized Aging Vessel
This system is designed and made as per industrial standards ASTM D6521 and AASHTO PPI. It simulates the accelerated aging (oxidation) process of asphalt binders in service on road by means of pressurized air and elevated temperature.
The pressure aging vessel equipment integrates the pressure container device with the optimized configuration of the automatic operating system, and uses a touch screen for real-time monitoring to ensure the correct operation of the equipment. Asphalt aging vacuum degassing box, temperature and time linkage control. The casing and main structure of the complete system equipment are made of high-quality 304 stainless steel, which is durable.
Features:
1. The system consists of PAV-1-1 Pressure Aging Vessel and PAV-1-2 Vacuum Degassing Oven.
2. The manufacture, installation and use of this system comply with the relevant provisions of the Regulations on Safety Supervision of Special Equipment.
3. The technical indicators of the system have reached the leading level of similar equipment, and it is an ideal device for related experiments.
PAV-1-1 Pressuring aging vessel
| Electricity | Power supply | AC(220±10%)V,50Hz |
| Rated power | 1100W | |
| Rated current | 10A | |
| Volume | 13L | |
| Medium | Air | |
| Rated working temp. | 110℃±5℃ | |
| Rated working pressure | 2.1MPa | |
| Designed pressure | 2.2 MPa | |
| Water pressure | 2.75 MPa | |
| Safety valve opening pressure | 2.15 MPa | |
| Vessel | Explosive pressure for rupture disk | 2.6 MPa |
| Pressure controller | Model | WP962-2(WP-D90) |
| Precision | ±0.01MPa | |
| Temperature and time controller | Temperature control precision | ±0.1℃ |
| Grading | 64×1080min | |
| Outage maintaining function | Yes | |
| Diemension | 630mm×450mm×500mm | |
PAV-1-2 Aging vacuum vessel
| Electricity | Power supply | AC(220±10%)V,50Hz |
| Rated power | 900W | |
| Rated current | 10A | |
| Vessel | Volume | 13L |
| Medium | Air | |
| Rated working temp. | 180℃±5℃ | |
| Rated working pressure | Absolute pressure 15kPa | |
| Pressure control mode | Electric contact pressure gauge | |
| Temperature and time controller | Model | XMT-E55T2 |
| Temperature control precision | ±0.1℃ | |
| Time control mode | Button | |
| Dimension | 560mm×390mm×350mm | |
