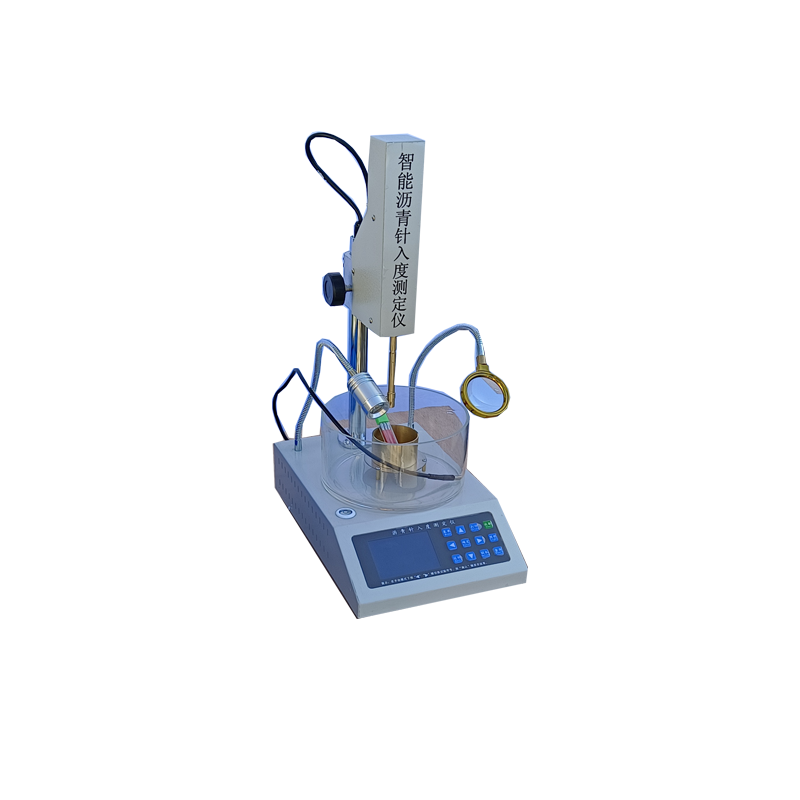

Penetration Test Equipment for Asphalt / Bitumen Automatic penetrometer

APPLICATION OVERVIEW:

This instrument is mainly used for the penetration of viscous road petroleum asphalt, liquid petroleum, asphalt and asphalt materials after distillation or emulsification tests.

Parameters

Product name

Asphalt Needle Penetration Tester

Minimum grading 0.01mm
Measuring range 0-50mm
Weight of needle and gauge

100±0.05g

Needle entry time control device

Time adjust range: 0-99 seconds

Time error: less than ±0.1 second.

Maximum penetration depth

40mm

Power supply

220V/50HZ

Sample plate

Ф 55 * 35 mm flat brass tubular plate

Heat preservation plate

Volume:> 15L     Raw material:glass

Depth:>60mm.    Shape: flat tubular plate
