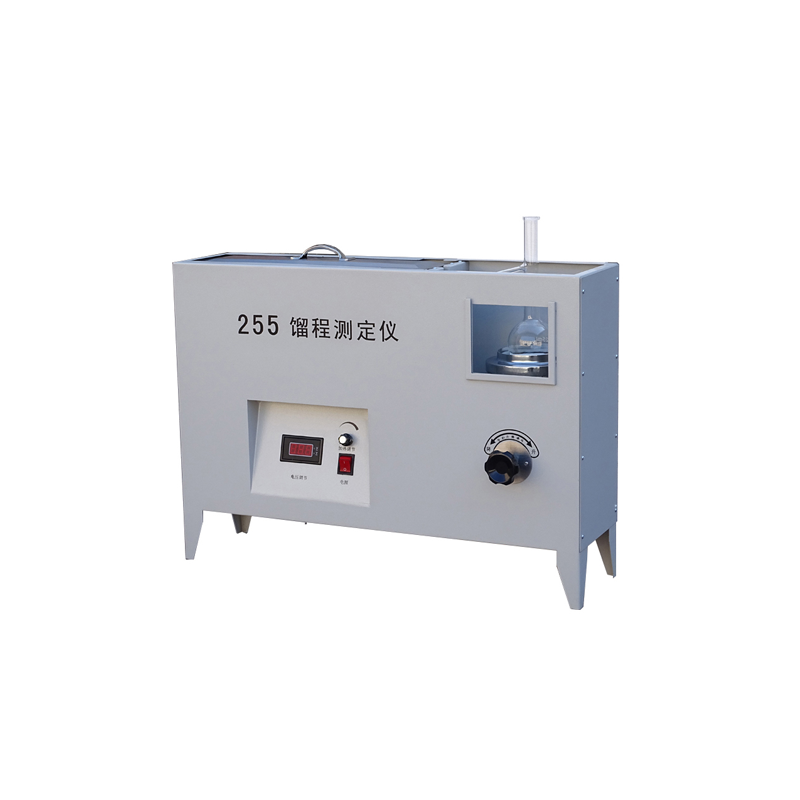

Petroleum asphalt distillation tester

1、Working power supply: AC (220 ± 10%) V, 50Hz
2、 distillation flask: made of hard glass, heat-resistant 500 ℃ or more. Bottle ball diameter of Ф69 mm ± 1mm, bottle neck thickness Ф16 mm ± 1mm, the branch pipe and the neck of the bottle into 75 ° ± 3 ° angle
3、Thermometer:(0～360)℃，division 1℃，conform to the requirements of national standard GB/T 514.
4、Condensate tank: made of stainless steel material, condensate tube is refined with ф16㎜×1㎜ brass tube.
5、Heating regulation: It is composed of heating device, silicon controlled temperature regulation circuit and control panel. The power of the heating device is 1000W, and the heating rate is continuously adjustable.
6、 measuring cylinder and pressure iron: measuring cylinder for 10 ml, 100 ml two kinds.
7、 the working environment: ambient temperature (-10 ~ +35)℃; relative humidity ≤ 85
8、 the machine power consumption: not more than 1100W
9、Dimensions： 710㎜×240㎜×470㎜ (L×W×H)
