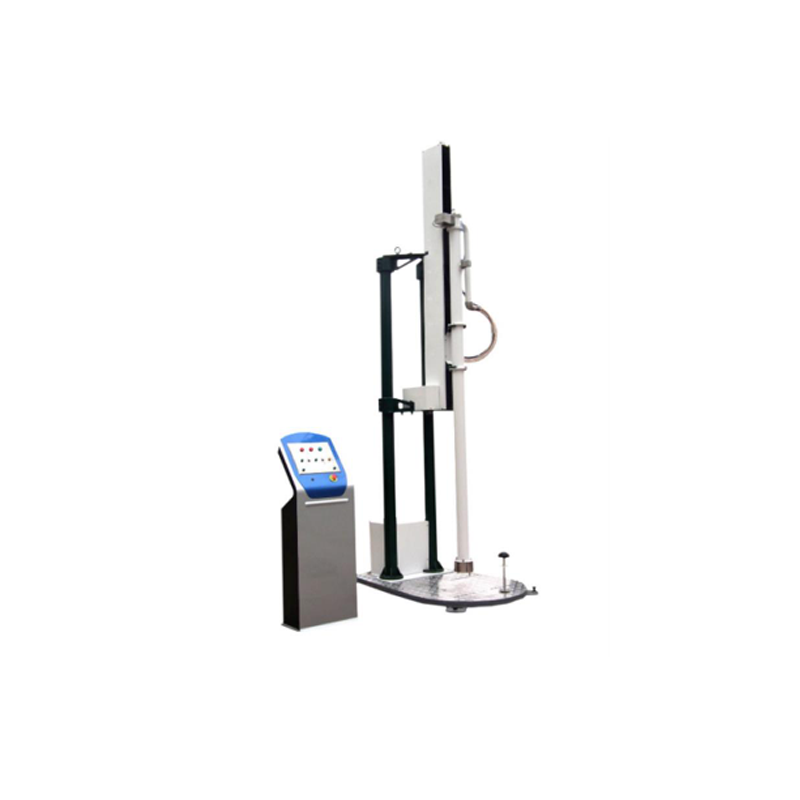

Plastic inspection well impact tester
1. Flow channel impact, well base diameter range Ф315mm~Ф1600mm
2.Side wall impact, well base diameter range Ф315mm~Ф1400mm
3.Hammer impact height 2.5m
4.Impact hammer type d90
5.Hammer mass 1.0kg
6.Pipe lifting stroke 1.5m
7.Pipe lifting speed 1.2m/min
8.Hammer lifting method Vacuum adsorption
9.Outer size 1.95mx1.42mx4.70m(LxWxH)
10.Air source 0.5MPa~0.8MPa compressed air
11.Power supply 220(1-15%)VAC-220 (1+10%)
2.5kW 50Hz
12.Weight 1200kg
