Plastic Lab Hdt Heat Deflection Vst Vicat Softening Temperature Testing Equipment

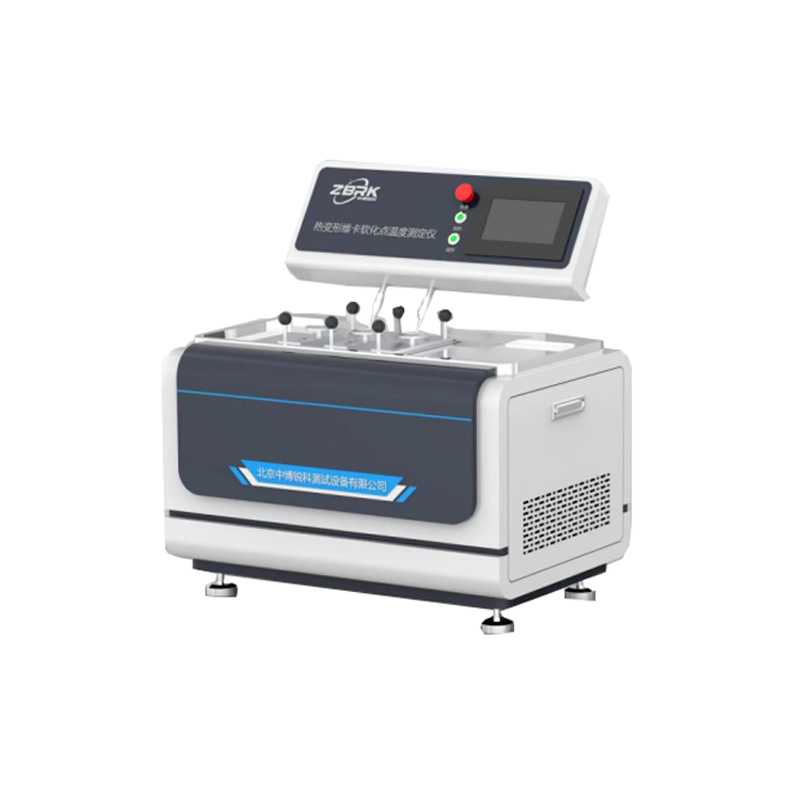

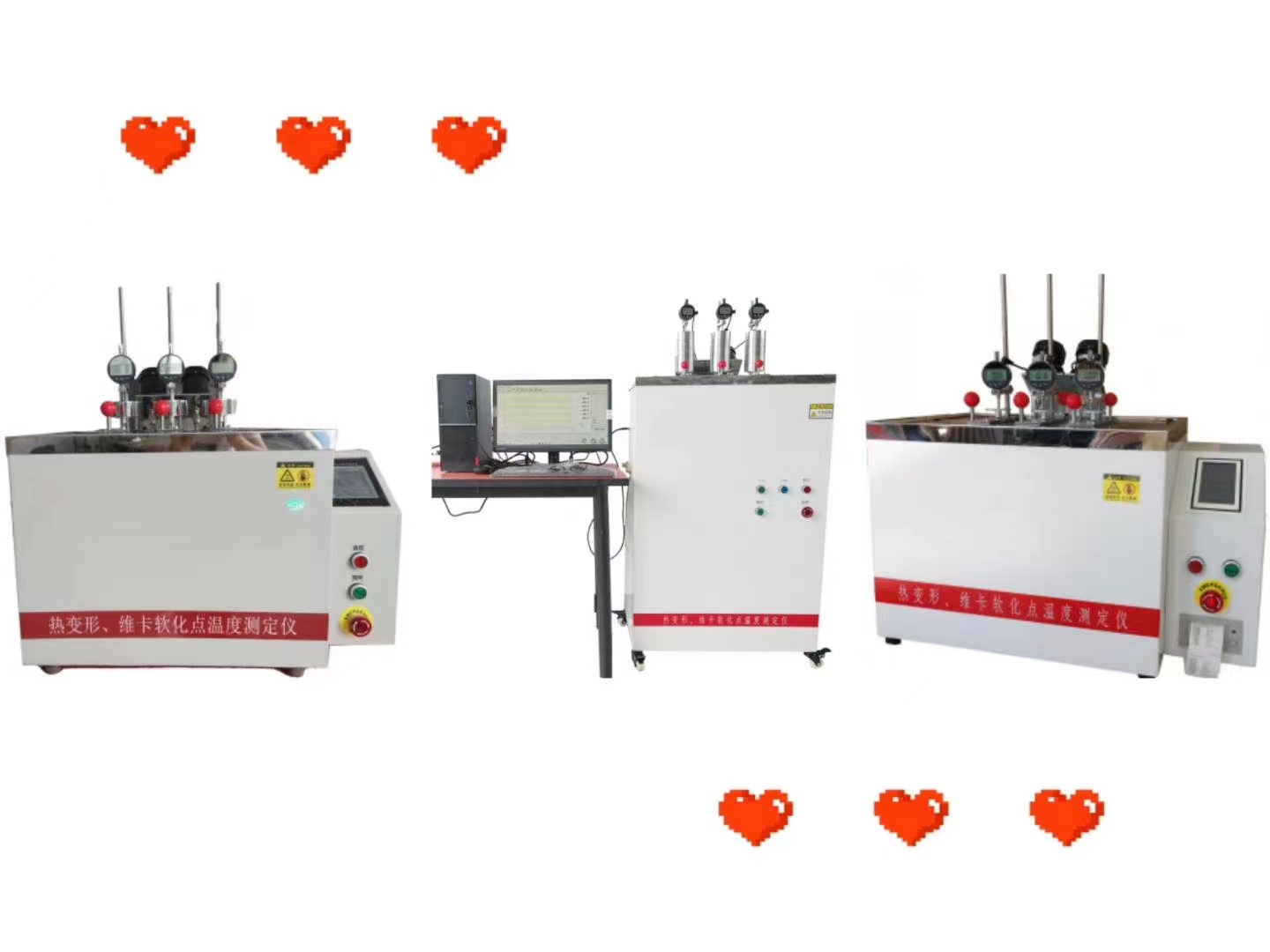

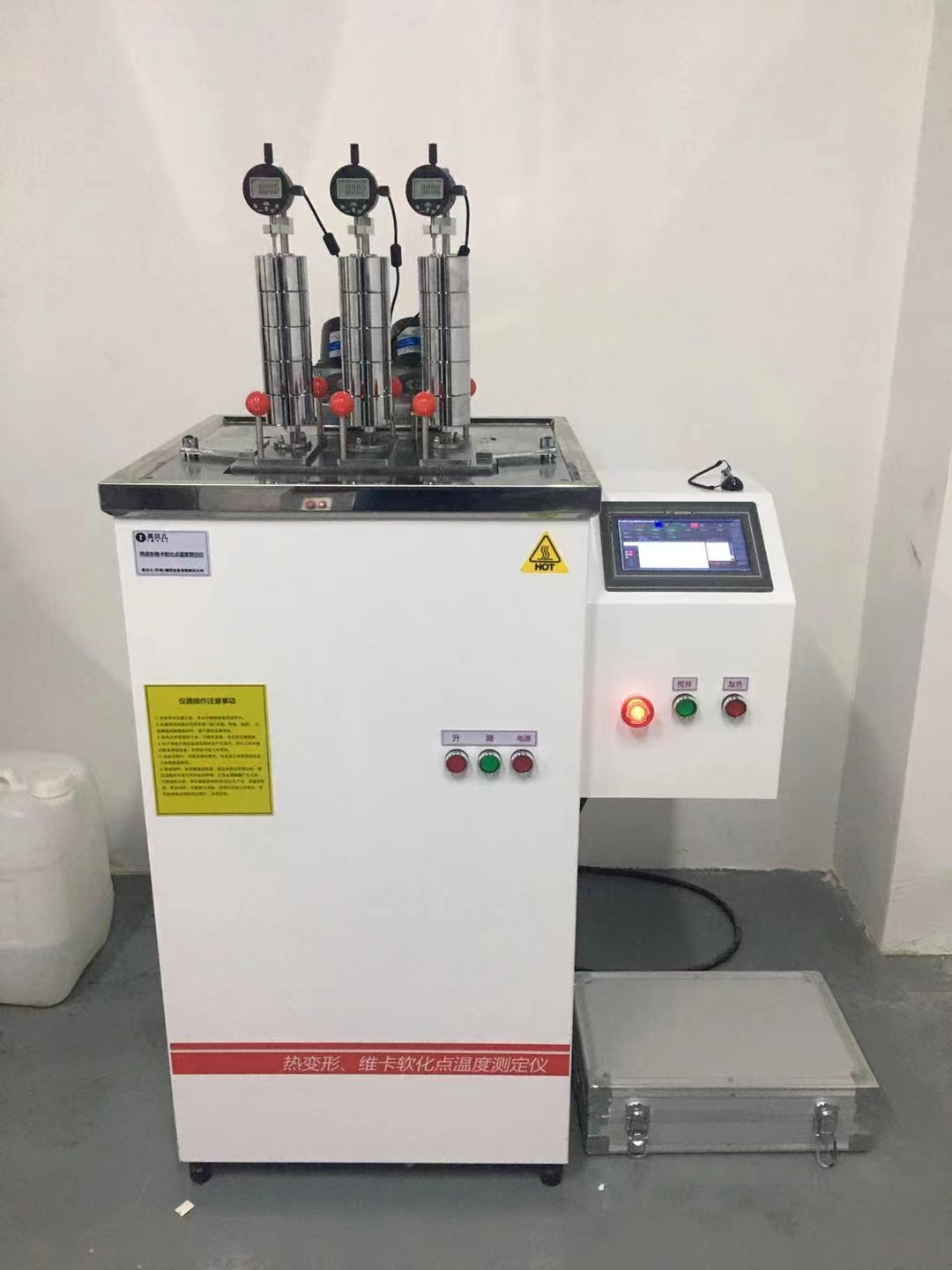

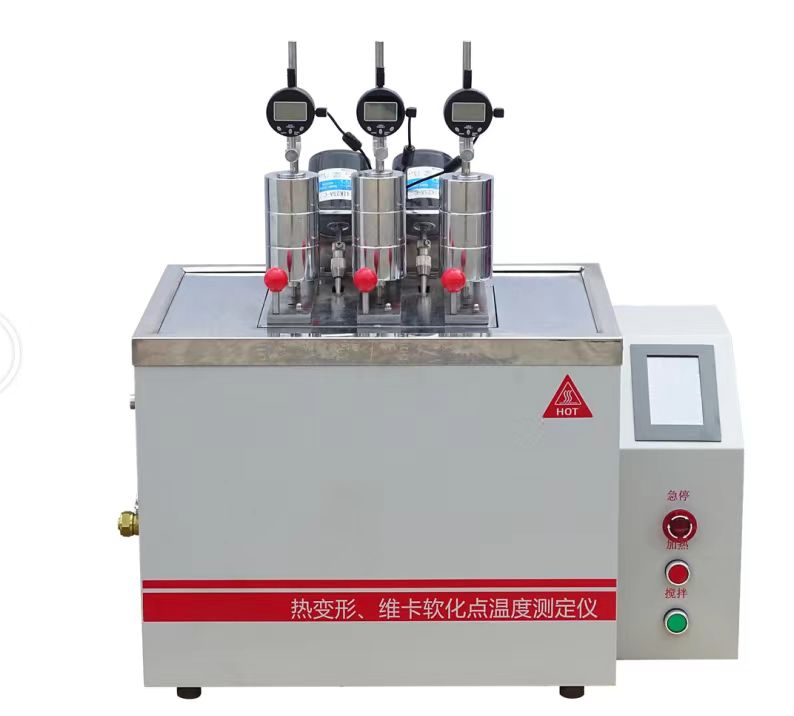

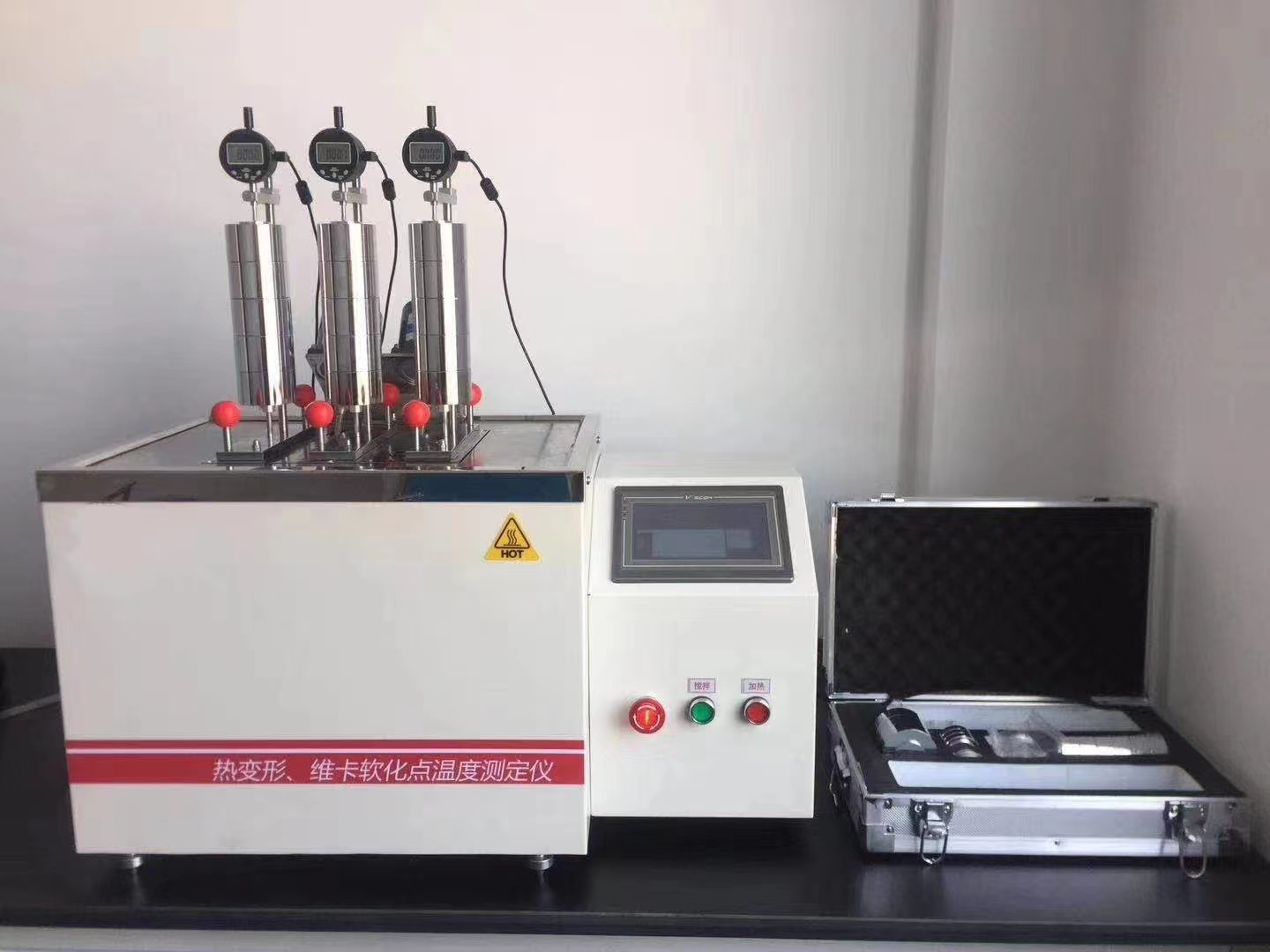

ZXRW-300C-3 thermal deformation, Vica softening point tester

XZXRW-300C-3 thermal deformation, Vica softening point tester using PLC programmable controller temperature adjustment using touch screen display operation. The product is simple to operate, easy to use, stable performance, high precision, and in the test process can be real-time monitoring of the test temperature and deformation; At the end of the test, the system automatically stops heating, and the test curve can be displayed. This series of models is the quality inspection units, colleges and universities and enterprises of the necessary instruments for self-inspection.

This machine is mainly used for non-metallic materials such as plastic, rubber, nylon, electric insulating materials, such as thermal deformation temperature and Vica softening point temperature measurement. Products comply with IS075(E), IS0306(E), GB/T8802, GB/ T1633, GB/ T1634 and other standards.

Main technical parameters:

Temperature control range: ambient temperature -300 ° C

Heating rate: (120±10)℃/ h (12±1)℃/6min

(50±5)℃/h (5±0.5)℃/6min

Temperature control accuracy: ±0.5℃

Maximum deformation indication error: ±0.001mm

Deformation measurement range: 0-1.5mm

Number of test racks: 3

Weight of load rod and pallet: 68g

Heating medium: methyl silicone oil (motion viscosity is generally selected 200 kris) or transformer oil

Cooling method: more than 150 natural cooling, 150 below water cooling or natural cooling.

Heating power: 4kw
