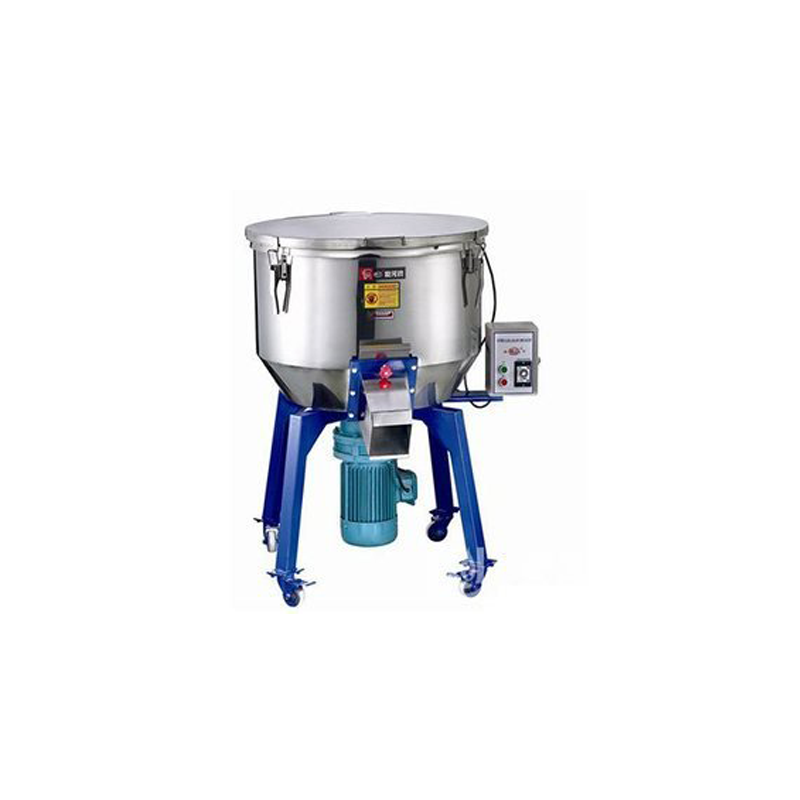

Plastic Mixer or Dry Pellets Blender

Application:

Use of high-speed paddle page vortex operation, the plastic particles (powder branches) high-speed rollover crash friction generates heat, so that the material in the mixing of the water also makes rapid evaporation from the exhaust pipe to achieve the purpose of drying. The first 15 minutes barrel material can be a water content of 8% of the material down to a water content of 1%, the continuous working time is gradually decreasing spices,

Technical Parameter:

1 Motor power: four motor 15kw, three-phase 380v 50hz, speed: 480r / min,
2 .3.0mm thick double-thick stainless steel barrel, middle insulation,
3 double 6mm thick stainless steel paddle on page 202,
4 Production capacity: 200-300kg / h,
5 Chint Electric, temperature, 80 degrees controllable adjustable current overload protection, safe travel protection,
6 dried stirred independent control circuit,
7 between 0-30 minutes adjustable timer, matching precision temperature sensing system,
8 Mechanical Size: 1.34 * 0.98 * 1.52m,
9 Machine Weight: 270kg.
