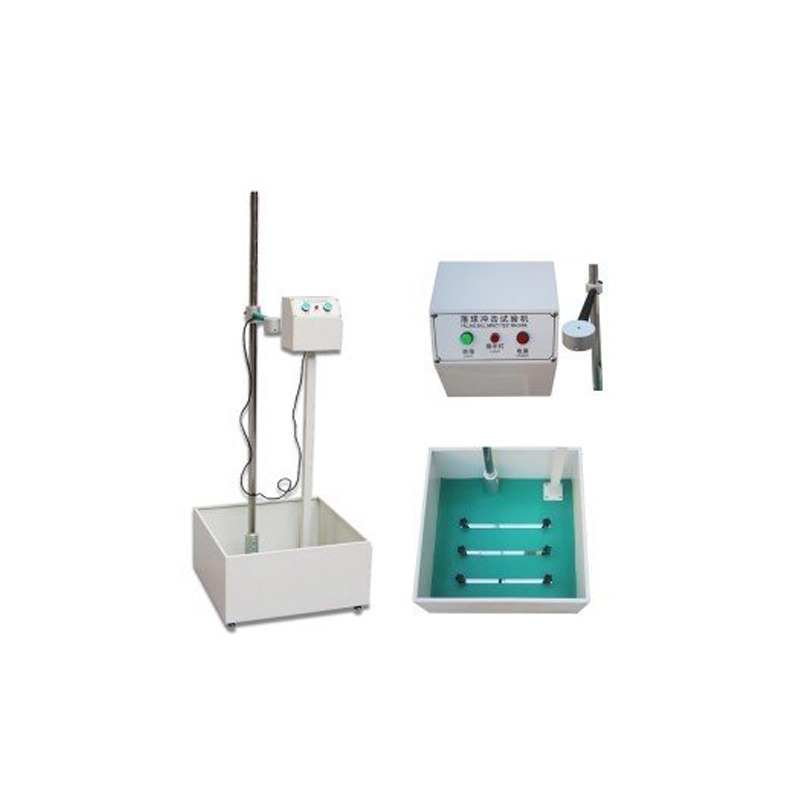

Professional Foam Drop Ball Rebound Resilience Tester drop ball impact tester
|
Drop height
|
500±0.5%mm
|
|
Drop ball
|
Diameter:￠16±0.05 mm, mass 16.8g ± 1.5 g
|
|
Accuracy
|
<1.5%
|
|
Display
|
LCD Touch Screen interface
|
|
Sensor
|
Optical fiber sensor
|
|
Test result
|
Rebound height, rebound rate and average rebound rate after 5 test times
|
|
Sample size (L×W×H)
|
100 mm×100mm× 50mm
|
|
Machine dimension (L×W×H)
|
575×305×630mm
|
|
Test results
|
Output by built-in printer
|
|
Power
|
0.1KW
|
|
Configuration
|
Name
|
Details
|
|
Items
|
Documents
|
Operation Manual*1 piece;
Factory Inspection Report*1 piece;
Operation Video in USB flash disk with machine*1 piece
|
|
Power line
|
1 piece
|
|
|
Plug
|
1 piece(Per your local plug standard)
|
|
|
Optical fiber ranging sensor
|
1 Set
|
|
|
Micro-Printer
|
1 Set
|
|
|
Touch screen
|
1 piece
|
|
|
PLC
|
1 piece
|
|
|
Electrical accessories
|
1 Set
|
|
|
Specimen holder
|
1 Set
|
|
|
Packing box
|
1 Set ( Two steel balls and one sampling rod )
|
