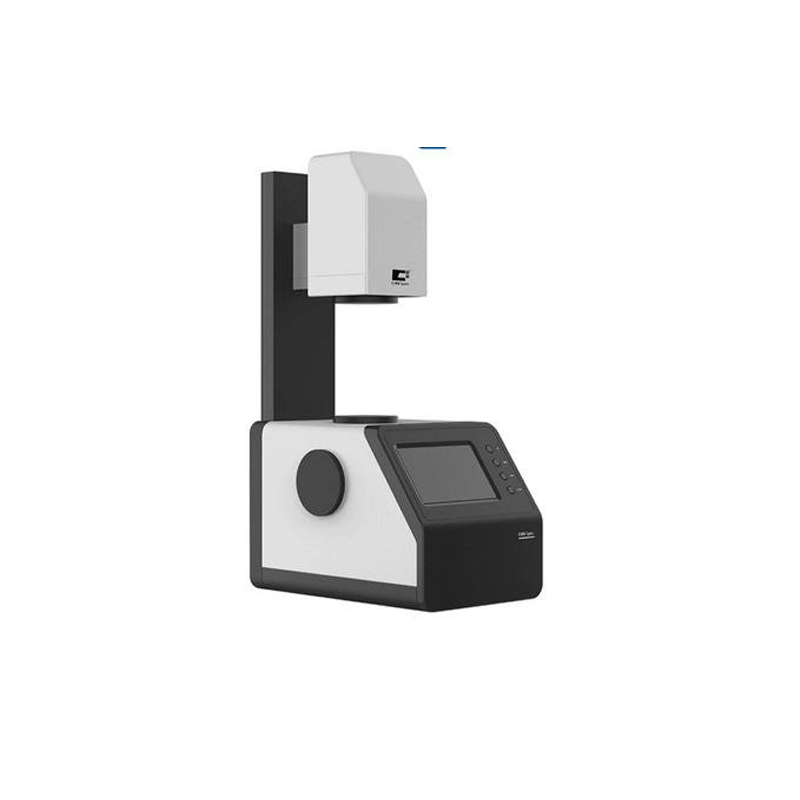

Reflection And Luminous Transmittance Liquid Laboratory Digital Glass Haze Meter Test Instrument
Part 2. Technical Data
|
Light Source |
CIE-A,CIE-C,CIE-D65 |
|
Standards |
ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08 |
|
Parameters |
HAZE, Transmittance(T) |
|
Spectral Response |
CIE Luminosity function Y/V (λ) |
|
Geometry |
0/d |
|
Measurement Area/ Aperture Size |
15mm/21mm |
|
Measurement Range |
0-100% |
|
Haze Resolution |
0.01 |
|
Haze Repeatability |
haze<10,Repeatability≤0.05;haze≥10,Repeatability≤0.1 |
|
Sample Size |
Thickness ≤150mm |
|
Memory |
20000 value |
|
Interface |
USB |
|
Power |
DC24V |
|
Working Temperature |
10-40 ℃ (+50 – 104 °F) |
|
Storage Temperature |
0-50℃ (+32 – 122 °F) |
|
Size (LxWxH) |
310mm X 215mm X 540mm |
|
Standard Accessory |
PC software (Haze QC) |
|
Optional |
Fixtures,haze standard plate,Custom Made Aperture |
