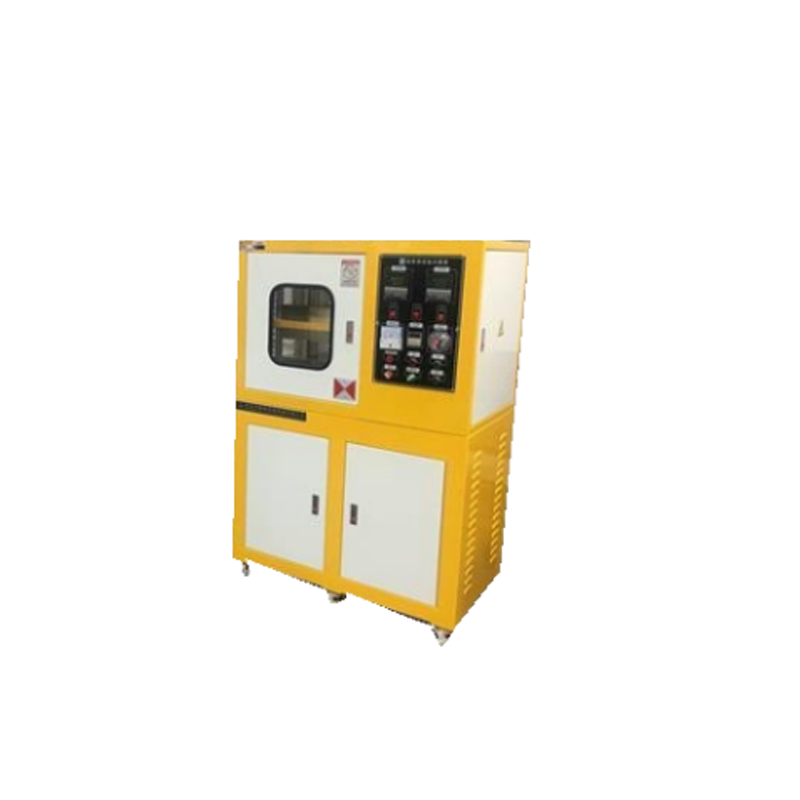

Rubber and Plastic Lab Hot Press Machine
The material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, make the material shaping, testing and serving as the basis for the ingredient of mass production.
| Capacity | 10T,20T,30T,50T |
| Temp. Range | Room temp. ~300℃ |
| Temp. Controller | LED Indicator,press key set input, the value indicate output |
| Timer | LED display,time range 0.1S~99min~9.9hr |
| Heating type | Electrical Heating |
| Hot pressure plate | 300×300mm / 350x350mm / 500x500mm optional |
| Cold pressure plate | 300×300mm / 350x350mm / 500x500mm optional |
| Distance of pressure plate | 100mm |
| Pressure material | SKD chromium-molybdenum alloy |
| Pressure surface | Mirror chrome plated |
| Cooling temperature | Room temp. ~+5℃ |
| Cooling type | Water cooling / Air cooling (optional) |
| Oil pressure system | The proportion hydraulic pressure current capacity loop circuit
control system,the GPY oil pump driver high performance electroencephalographic |
| matching high accuracy non resistance piston of oil cylinder carry
out constant speed rate control mode, can preelection one, twice pressure and time. |
|
| Oil cylinder stroke | Max 200mm |
| Oil cylinder speed | 11mm/s |
| Pressure gauge | 0~350kg/sq.cm |
| power | 10.6HP |
| Dimension W×D×H | 1000×500×1500 mm |
| Power supply | 3 phase,AC380V,20A (or customize) |
| Weight |
About 600kg |
