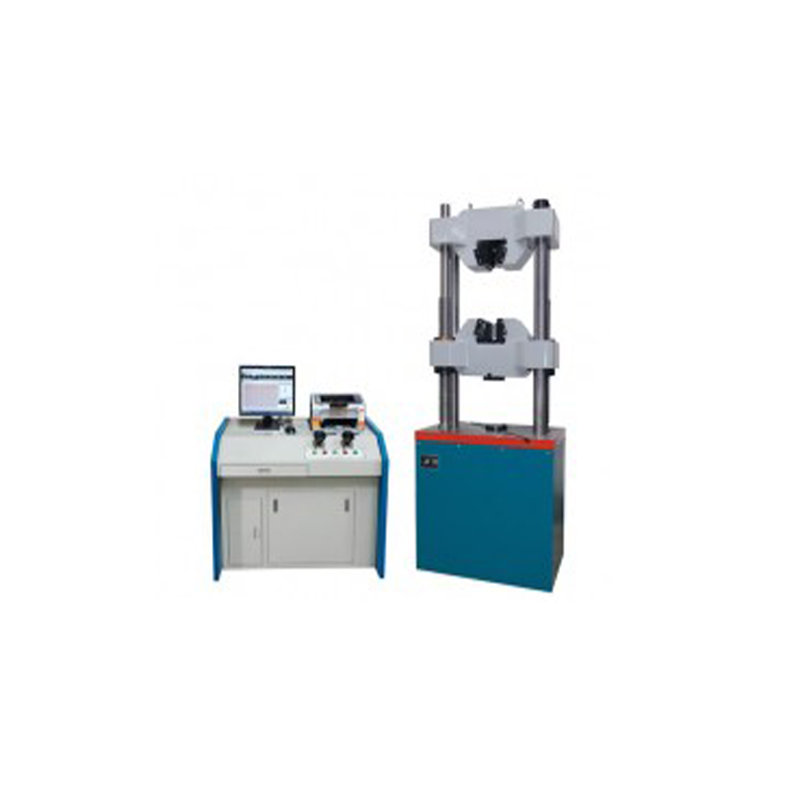

Servo Hydraulic Universal Testing Machine for wire rope steel rebar tensile strength testing

This series of testing machine is loaded by hydraulic pressure, and the manual control technology is used to test the stretching, compression, bending and shearing of metallic and non-metallic materials, showing various curves, forces, deformation, displacement and other closed-loop control methods, which can be switched freely in the test.Automatic recording of stored data.

Maximum test force (kN)

300

600

1000

Testing machine accuracy level

Level 1

Piston stroke (mm)

200

• supporting way

Manual/hydraulic

Compression test space (mm)

600

Tensile test space (mm)

700

Power (kW)

1.5

Compression disc (mm)

Φ148

Φ198

Φ225

Clamping range of round sample (mm)

Φ10-30

Φ13-40

Φ13-40

Clamping range of flat sample (mm)

0-10

0-15

0-20

Span of bending fulcrum (mm)

50-300

Bending center/rod diameter (mm)

50/50

Number of upright posts (lead screws)

6column

Overall dimension of main engine (mm)

810*560*1910

880*570*2050

940*640*2250

Weight of main engine (kg)

1620

2000

2600

Size of control cabinet (mm)

550*550*1370

Weight of control cabinet (kg)

100
