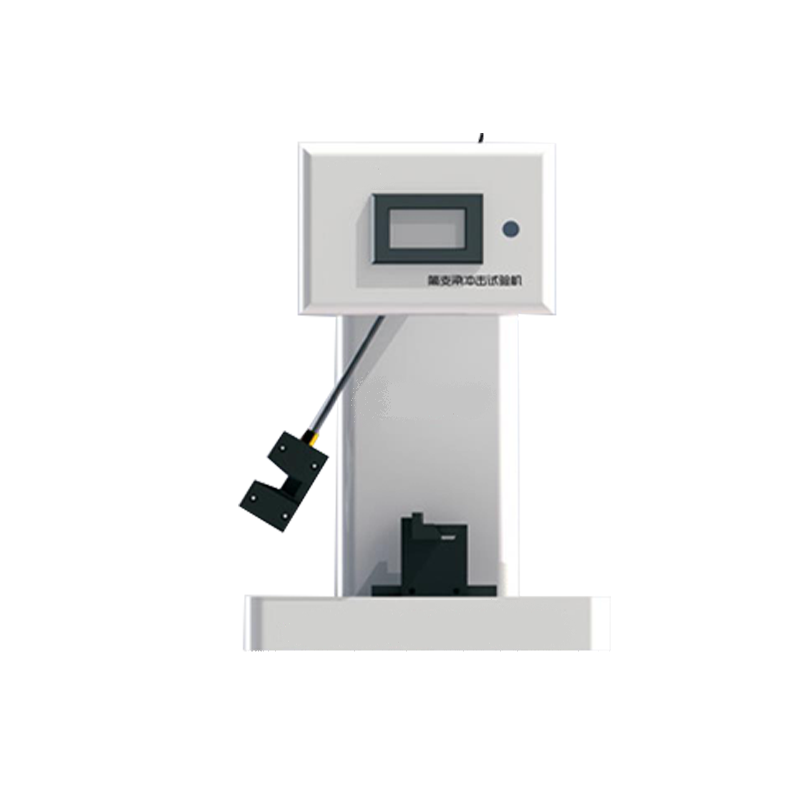

Simply Supported Beam Impact Tester
[rank_math_breadcrumb]
Simply Supported Beam Impact Tester
1、impact speed: 2.9m / s (customized), 3.8m / s
2、 Pendulum energy: 7.5J, 15J, 25J, 50J
3、Distance from the center of the pendulum to the center of the specimen:380mm
4、Pendulum lifting angle:150°.
5、 jaw support spacing: 40mm, 60mm, 70mm, 95mm
6、support knife edge radius: R = 1mm
7、impact knife edge angle: 30
8、 impact knife edge corner radius: R = 2mm
9、Dimensions:700x300x800mm
10、Weight of the whole machine:90KG
