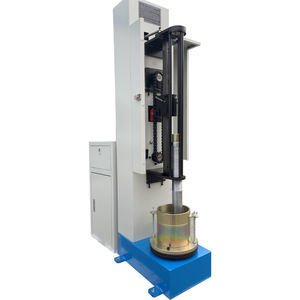

Automatic Proctor Compactor
It is suitable for the foundation engineering construction such as water conservancy dam, traffic, railway, airport
and building etc. With standard compaction method to determine the relationship between density and water ratio,then confirm the dry density and moisture content of soil. It could satisfy the specimen preparation requirements of CBR tests and resilience modulus tests. It could provide sand module and spodosol module of dia. 152 and dia. 100. It could perform light compaction and heavy compaction. With perfect designation, it has lots of specialties such as digital display, auto number and auto circulation etc.
| Product Name | Standard Proctor Compaction Test Procedure Apparatus |
| Heavy-duty compacting test | hammer weight 4.5kg drop height: 450mm |
| Light-duty compacting test | hammer weight 2.5kg drop height: 300mm |
| Specimen cylinder dia | dia. 100, dia. 152 mm |
| Hammer head dia. | dia. 50 mm |
| Compacting number | 30 times/min |
| Power | 380V / 220V |
| Dimension | 650×400×1320 mm |
| Weight | 130kg |
