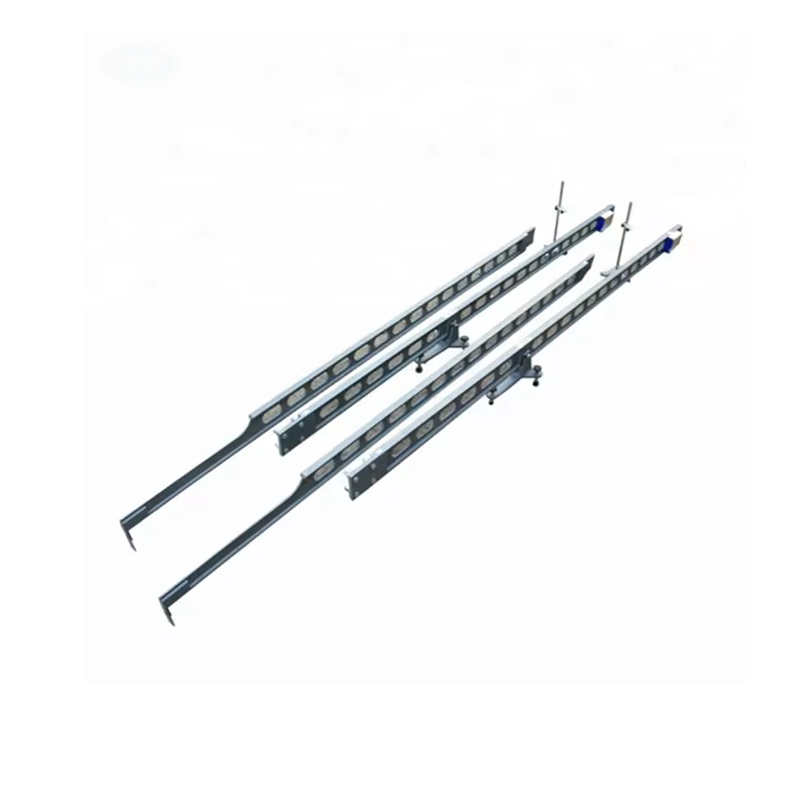

Soil Pavement Resilience benkelman Beam test apparatus

The instrument is measured pavement rebound deflection value, in order to assess overall strength of the road.
It is suitable for the determination of various pavement rebound deflection value, so as to assess the road carrying capacity, for the use of pavement design, in order to apply to roadbed compaction degree deflection test in the process of construction.

Length:3.6m, 5.4m, 7.2 m

Lever ratio：2:01

Indication resolution：0.01mm

Load:200g, deflection <0.05mm

Pakcing size：300x30x30CM

Accessories：include 2 pcs Dial indicator and 2PCS holder
