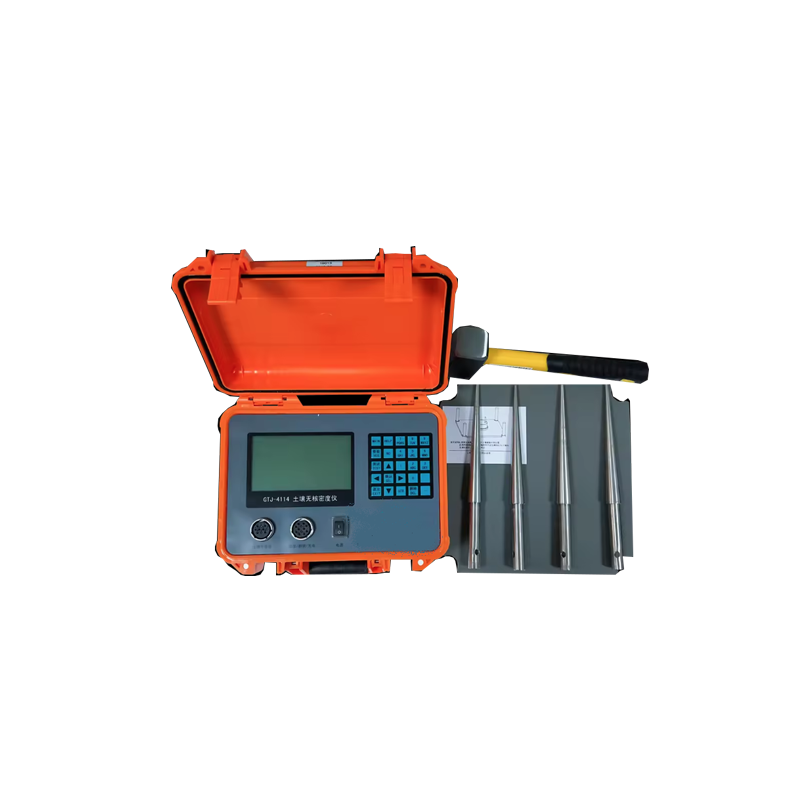

Soil seedless densitometer

4114 soil seedless density meter (EDG) can accurately measure the density, moisture content and compaction degree of the soil in the road and foundation.

1.name of instrument：Soil seedless densitometer

2.specifications and models：IWIN-4114

3.EDG host and connector：Waterproof connection, but it is best not to use in rainy days

4.Wet density range：According to typical compacted soil dry density accuracy: less than 3% of standard physical test

5.Moisture content range：According to typical compacted soil moisture content accuracy: less than 3% of standard physical test

6.Maximum rs-232 cable length：100cm

7.internal electric source：12V nimh,2000mAh capacity

8.Battery Life：About 24 hours

9.using temperature range：0~50℃

10.Use humidity scope：5%~90%

11.EDG controller weight：8kg

12.EDG controller dimensions：300*260*140mm

13.EDGweight of attachment：about3kg
