Soil Testing Equipment 500kn Plate Bearing Load Test Apparatus

plate bearing tester is a field test used for determining the bearing capacity of soil under loading conditions. It can also be evaluate designs of air port and highway pavements.

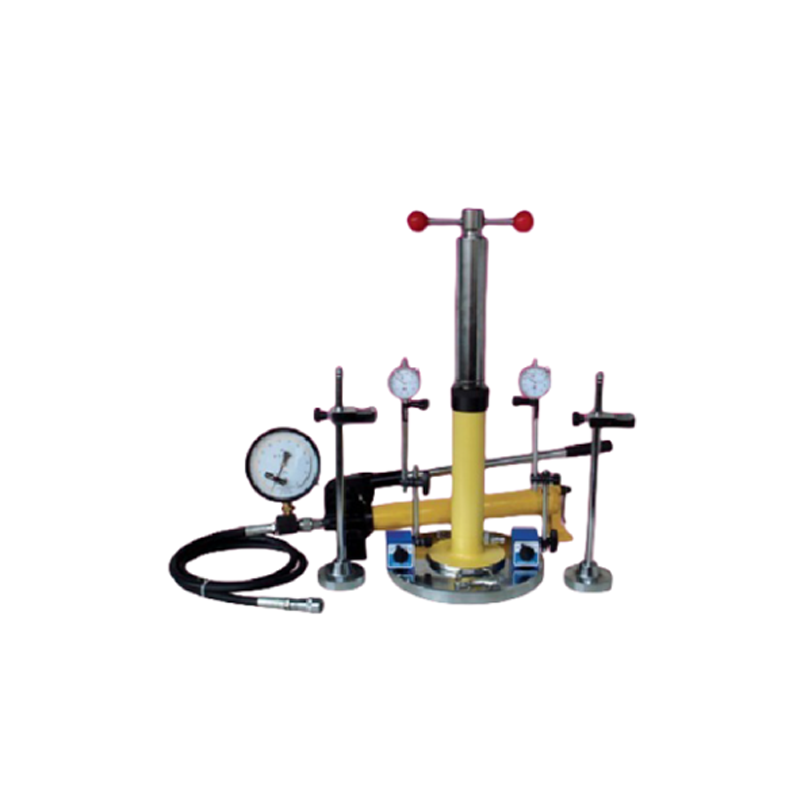

This plate bearing tester consists of a hydraulic jack complete with hand pump and rubber; fast-connect hose, large pressure dial gauge; seat plate; 3 precision dial gauges (50*0.01mm); 3m. complete mounting hardware for gauges, pump and jack. The plate bearing tester is available in three capacities: 100kn, 300kn, and 500kn.

ASTM plate set includes: 152,300,450,600,750mm steel plates with eyebolts for transporting and placement of plates with a steel rod.

Features:

Long piston travel to accommodate setup  of reaction loading system.

Double-delivery hand pump for fast approach in setup with reaction loading system.

High-precision dial gauges.

Heavy-duty, rigid measuring bridge.
