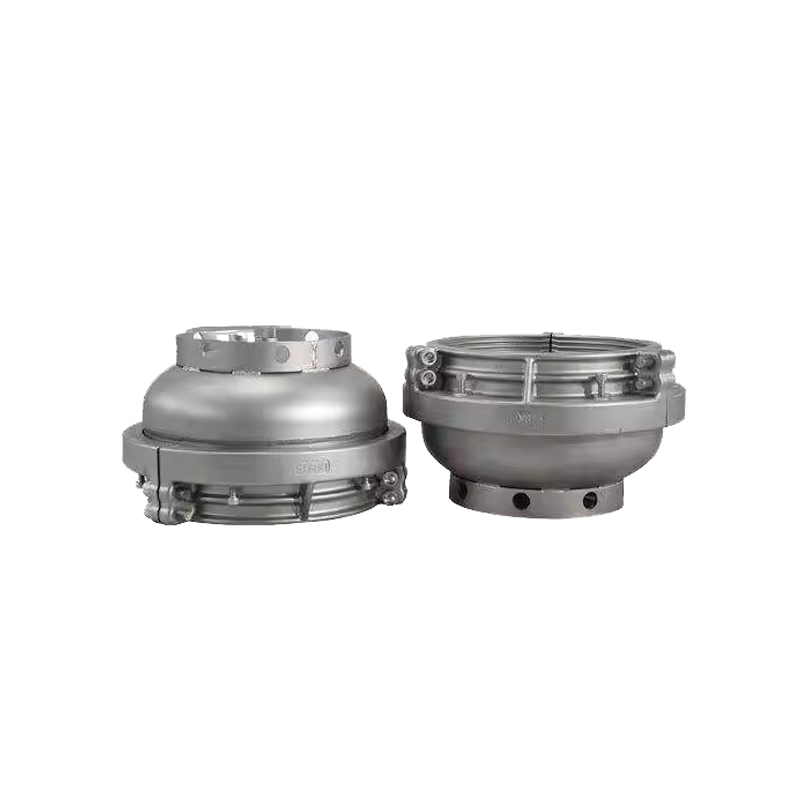

Stainless Steel End Caps For Pipe Hydrostatic Pressure and Burst Testing/Stainless Steel Fixtures

(1） Test pressure: 10MPa, set at 0.1-10 MPa.

(2) Pressure control accuracy: 1%, which can also be set.

(3) pressure display resolution: 0.001MPa

(4) Measuring range: 0.1-10MPa

(5) Allowable error limit of indicated value: within 1.0% of indicated value.

(6) Control mode: industrial tablet computer and touch screen control display.

(7) Timing time: 0 ~ 10,000 hours, with positive timing and countdown settings, with a small time gradient of 1 minute;

(8) The whole machine adopts modular design, and there is no mutual interference in pressure setting between stations.

(9) Number of test paths: 10 digits, each path is independently controlled and does not affect each other. When a certain sample is damaged, the electromagnetic valve of this channel can be automatically closed, and the experiments of other channels are not affected as usual. Experimental data and graphics are automatically recorded and saved in the computer (modular design, with the function of upgrading, and can be upgraded to 100 channels at any time).

(10) Hydrostatic test and blasting test can be done in each path, with fast booster speed, and linear booster technology is adopted, so the booster is stable and reliable. (11) It has the functions of leakage judgment, rupture identification, overload protection, power failure protection, test addition, curve traversal, etc.

(12) It can be used for long-term hydrostatic test of pipelines and explosion test of pipes (explosion test can be carried out at all stations), thermal stability test of thermoplastic pipes under hydrostatic state (8760) and slow crack growth resistance test.

(13) It can automatically identify the expansion coefficient of pipes and adopt different pressure control methods.

(14) Breakage identification, real-time monitoring, power failure data storage, incoming call data recovery, test result storage, printing and other functions, and has the functions of sample pretreatment and state adjustment. A-type pressure test fixture Add 450 mm, 500 mm, 560 mm and 630mm common pressure test fixtures, which are made of stainless steel, and the design pressure is 6.0MPa.
